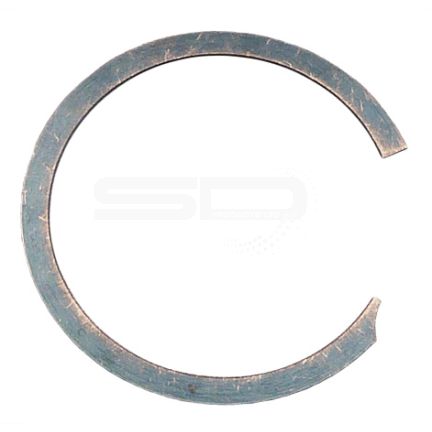

SHR-HIS Spiral Housing Rings - SHR-HIS-375
Product Description
Internal, Heavy-Duty Snap Ring
These single-turn snap rings are ideal for applications involving high thrust loads.
| Shaft Dia. (In.) Ds | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Section (S and Tol.) | Ring Thickness (T and Tol.) | Thrust Load (lbs.) Groove Safety Factor of 2 | Thrust Load (lbs.) Ring Safety Factor of 3 |
|---|---|---|---|---|---|---|---|
| 3.75 | 3.888 (+0.013/-0.0) | 0.124 (+0.007/-0.0) | 3.922 (+0.035/-0.0) | 0.248 (±0.005) | 0.115 (±0.003) | 18290 | 44103 |
