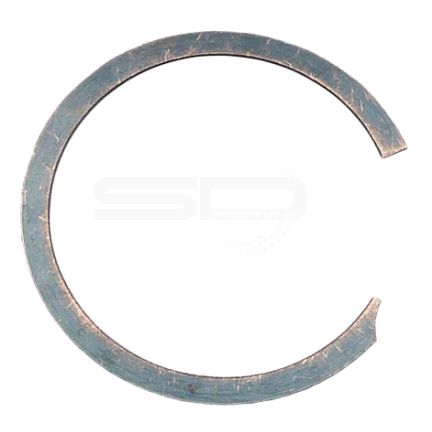

SHR-HIS Spiral Housing Rings - SHR-HIS-87
Product Description
Internal, Heavy-Duty Snap Ring
These single-turn snap rings are ideal for applications involving high thrust loads.
| Shaft Dia. (In.) Ds | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Section (S and Tol.) | Ring Thickness (T and Tol.) | Thrust Load (lbs.) Groove Safety Factor of 2 | Thrust Load (lbs.) Ring Safety Factor of 3 |
|---|---|---|---|---|---|---|---|
| 0.875 | 0.915 (+0.005/-0.0) | 0.043 (+0.006/-0.0) | 0.924 (+0.013/-0.0) | 0.075 (±0.004) | 0.037 (±0.002) | 1237 | 4068 |
