SHR-HIS Spiral Housing Rings - SHR-HIS-900
Product Description

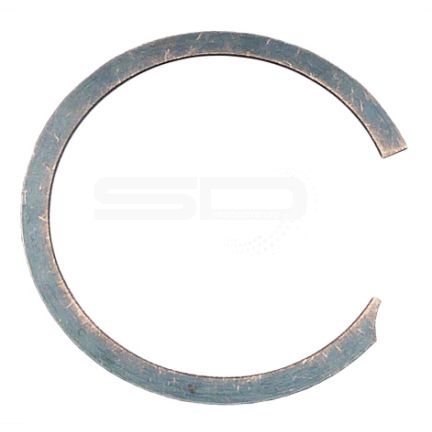

Internal, Heavy-Duty Snap Ring
These single-turn snap rings are ideal for applications involving high thrust loads.
| Shaft Dia. (In.) Ds | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Section (S and Tol.) | Ring Thickness (T and Tol.) | Thrust Load (lbs.) Groove Safety Factor of 2 | Thrust Load (lbs.) Ring Safety Factor of 3 |
|---|---|---|---|---|---|---|---|
| 9 | 9.236 (+0.028/-0.0) | 0.203 (+0.007/-0.0) | 9.326 (+0.07/-0.0) | 0.373 (±0.006) | 0.192 (±0.005) | 75068 | 160799 |
