SHR-IHD Spiral Retaining Rings

Product Description

Internal, Heavy Duty

The greatest size range and thrust capacity make these rings the only choice for applications that require minimum deflection or thrust loads that demand a deep groove capacity.

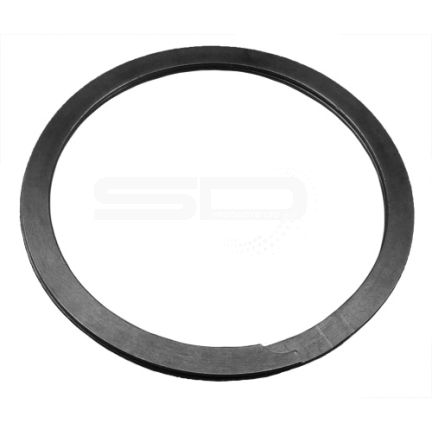

main product photo
Product Code Shaft Dia. (In.) Ds Groove Depth (d) Groove Dia. (Dg and Tol.) Groove Width (W and Tol.) Ring Free Dia. (Df and Tol.) Ring Section (S and Tol.) Ring Thickness (T and Tol.) Thrust Load (lbs.) Groove Safety Factor of 2 Thrust Load (lbs.) Ring Safety Factor of 3 No. of Packs
SHR-IHD-50 0.5 0.015 0.53 (±0.002) 0.039 (±0.003) 0.538 (+0.013/-0.0) 0.045 (±0.004) 0.035 (±0.002) 530 2530 Enquire Now
SHR-IHD-51 0.512 0.015 0.542 (±0.002) 0.039 (±0.003) 0.55 (+0.013/-0.0) 0.045 (±0.004) 0.035 (±0.002) 540 2590 Enquire Now
SHR-IHD-56 0.562 0.017 0.596 (±0.002) 0.039 (±0.003) 0.605 (+0.013/-0.0) 0.055 (±0.004) 0.035 (±0.002) 680 2840 Enquire Now
SHR-IHD-62 0.625 0.02 0.665 (±0.002) 0.039 (±0.003) 0.675 (+0.013/-0.0) 0.055 (±0.004) 0.035 (±0.002) 880 3160 Enquire Now
SHR-IHD-68 0.688 0.022 0.732 (±0.002) 0.039 (±0.003) 0.743 (+0.013/-0.0) 0.065 (±0.004) 0.035 (±0.002) 1070 3480 Enquire Now
SHR-IHD-75 0.75 0.023 0.796 (±0.002) 0.039 (±0.003) 0.807 (+0.013/-0.0) 0.065 (±0.004) 0.035 (±0.002) 1220 3790 Enquire Now
SHR-IHD-77 0.777 0.024 0.825 (±0.003) 0.046 (±0.003) 0.836 (+0.013/-0.0) 0.075 (±0.004) 0.042 (±0.002) 1320 4720 Enquire Now
SHR-IHD-81 0.812 0.025 0.862 (±0.003) 0.046 (±0.003) 0.873 (+0.013/-0.0) 0.075 (±0.004) 0.042 (±0.002) 1440 4930 Enquire Now
SHR-IHD-86 0.866 0.027 0.92 (±0.003) 0.046 (±0.003) 0.931 (+0.013/-0.0) 0.075 (±0.004) 0.042 (±0.002) 1650 5260 Enquire Now
SHR-IHD-87 0.875 0.028 0.931 (±0.003) 0.046 (±0.003) 0.943 (+0.013/-0.0) 0.085 (±0.004) 0.042 (±0.002) 1730 5310 Enquire Now
SHR-IHD-90 0.901 0.029 0.959 (±0.003) 0.046 (±0.003) 0.972 (+0.013/-0.0) 0.085 (±0.004) 0.042 (±0.002) 1850 5470 Enquire Now
SHR-IHD-93 0.938 0.031 1 (±0.003) 0.046 (±0.003) 1.013 (+0.013/-0.0) 0.085 (±0.004) 0.042 (±0.002) 2060 5690 Enquire Now
SHR-IHD-100 1 0.033 1.066 (±0.003) 0.046 (±0.003) 1.08 (+0.013/-0.0) 0.085 (±0.004) 0.042 (±0.002) 2330 6070 Enquire Now
SHR-IHD-102 1.023 0.034 1.091 (±0.003) 0.046 (±0.003) 1.105 (+0.013/-0.0) 0.085 (±0.004) 0.042 (±0.002) 2460 6210 Enquire Now
SHR-IHD-106 1.062 0.034 1.13 (±0.004) 0.056 (±0.004) 1.138 (+0.013/-0.0) 0.103 (±0.004) 0.05 (±0.002) 2550 7010 Enquire Now
SHR-IHD-112 1.125 0.036 1.197 (±0.004) 0.056 (±0.004) 1.205 (+0.013/-0.0) 0.103 (±0.004) 0.05 (±0.002) 2860 7420 Enquire Now
SHR-IHD-118 1.188 0.037 1.262 (±0.004) 0.056 (±0.004) 1.271 (+0.013/-0.0) 0.103 (±0.004) 0.05 (±0.002) 3110 7840 Enquire Now
SHR-IHD-125 1.25 0.04 1.33 (±0.004) 0.056 (±0.004) 1.339 (+0.013/-0.0) 0.103 (±0.004) 0.05 (±0.002) 3530 8250 Enquire Now
SHR-IHD-131 1.312 0.042 1.396 (±0.004) 0.056 (±0.004) 1.406 (+0.013/-0.0) 0.118 (±0.004) 0.05 (±0.002) 3900 8660 Enquire Now
SHR-IHD-137 1.375 0.043 1.461 (±0.004) 0.056 (±0.004) 1.471 (+0.013/-0.0) 0.118 (±0.004) 0.05 (±0.002) 4180 9070 Enquire Now
SHR-IHD-143 1.439 0.045 1.528 (±0.004) 0.056 (±0.004) 1.539 (+0.013/-0.0) 0.118 (±0.004) 0.05 (±0.002) 4580 9490 Enquire Now
SHR-IHD-145 1.456 0.046 1.548 (±0.004) 0.056 (±0.004) 1.559 (+0.013/-0.0) 0.118 (±0.004) 0.05 (±0.002) 4730 9610 Enquire Now
SHR-IHD-150 1.5 0.047 1.594 (±0.004) 0.056 (±0.004) 1.605 (+0.013/-0.0) 0.118 (±0.004) 0.05 (±0.002) 4980 9900 Enquire Now
SHR-IHD-156 1.562 0.048 1.658 (±0.005) 0.068 (±0.004) 1.675 (+0.02/-0.0) 0.128 (±0.004) 0.062 (±0.003) 5300 12780 Enquire Now
SHR-IHD-162 1.625 0.05 1.725 (±0.005) 0.068 (±0.004) 1.742 (+0.02/-0.0) 0.128 (±0.004) 0.062 (±0.003) 5740 13290 Enquire Now
SHR-IHD-165 1.653 0.051 1.755 (±0.005) 0.068 (±0.004) 1.772 (+0.02/-0.0) 0.128 (±0.004) 0.062 (±0.003) 5960 13520 Enquire Now
SHR-IHD-168 1.688 0.052 1.792 (±0.005) 0.068 (±0.004) 1.81 (+0.02/-0.0) 0.128 (±0.004) 0.062 (±0.003) 6210 13810 Enquire Now
SHR-IHD-175 1.75 0.054 1.858 (±0.005) 0.068 (±0.004) 1.876 (+0.02/-0.0) 0.128 (±0.004) 0.062 (±0.003) 6680 14320 Enquire Now
SHR-IHD-181 1.812 0.055 1.922 (±0.005) 0.068 (±0.004) 1.94 (+0.02/-0.0) 0.128 (±0.004) 0.062 (±0.003) 7050 14820 Enquire Now
SHR-IHD-185 1.85 0.056 1.962 (±0.005) 0.068 (±0.004) 1.981 (+0.02/-0.0) 0.158 (±0.004) 0.062 (±0.003) 7320 15130 Enquire Now
SHR-IHD-187 1.875 0.057 1.989 (±0.005) 0.068 (±0.004) 2.008 (+0.02/-0.0) 0.158 (±0.004) 0.062 (±0.003) 7560 15340 Enquire Now
SHR-IHD-193 1.938 0.059 2.056 (±0.005) 0.068 (±0.004) 2.075 (+0.02/-0.0) 0.158 (±0.004) 0.062 (±0.003) 8080 15850 Enquire Now
SHR-IHD-206 2.062 0.062 2.186 (±0.006) 0.086 (±0.005) 2.201 (+0.025/-0.0) 0.168 (±0.005) 0.078 (±0.003) 9040 21220 Enquire Now
SHR-IHD-200 2 0.061 2.122 (±0.005) 0.068 (±0.004) 2.142 (+0.02/-0.0) 0.158 (±0.004) 0.062 (±0.003) 8620 16360 Enquire Now
SHR-IHD-212 2.125 0.063 2.251 (±0.006) 0.086 (±0.005) 2.267 (+0.025/-0.0) 0.168 (±0.005) 0.078 (±0.003) 9460 21870 Enquire Now
SHR-IHD-218 2.188 0.065 2.318 (±0.006) 0.086 (±0.005) 2.334 (+0.025/-0.0) 0.168 (±0.005) 0.078 (±0.003) 10050 22520 Enquire Now
SHR-IHD-225 2.25 0.066 2.382 (±0.006) 0.086 (±0.005) 2.399 (+0.025/-0.0) 0.168 (±0.005) 0.078 (±0.003) 10500 23160 Enquire Now
SHR-IHD-231 2.312 0.069 2.45 (±0.006) 0.086 (±0.005) 2.467 (+0.025/-0.0) 0.2 (±0.005) 0.078 (±0.003) 11280 23800 Enquire Now
SHR-IHD-237 2.375 0.071 2.517 (±0.006) 0.086 (±0.005) 2.535 (+0.025/-0.0) 0.2 (±0.005) 0.078 (±0.003) 11920 24440 Enquire Now
SHR-IHD-244 2.44 0.072 2.584 (±0.006) 0.086 (±0.005) 2.602 (+0.025/-0.0) 0.2 (±0.005) 0.078 (±0.003) 12420 25110 Enquire Now
SHR-IHD-250 2.5 0.074 2.648 (±0.006) 0.086 (±0.005) 2.667 (+0.025/-0.0) 0.2 (±0.005) 0.078 (±0.003) 13080 25730 Enquire Now
SHR-IHD-253 2.531 0.075 2.681 (±0.006) 0.086 (±0.005) 2.7 (+0.025/-0.0) 0.2 (±0.005) 0.078 (±0.003) 13420 26050 Enquire Now
SHR-IHD-256 2.562 0.076 2.714 (±0.006) 0.103 (±0.005) 2.733 (+0.03/-0.0) 0.225 (±0.005) 0.093 (±0.003) 13760 29940 Enquire Now
SHR-IHD-262 2.625 0.078 2.781 (±0.006) 0.103 (±0.005) 2.801 (+0.03/-0.0) 0.225 (±0.005) 0.093 (±0.003) 14470 30680 Enquire Now
SHR-IHD-268 2.688 0.08 2.848 (±0.006) 0.103 (±0.005) 2.868 (+0.03/-0.0) 0.225 (±0.005) 0.093 (±0.003) 15200 31410 Enquire Now
SHR-IHD-275 2.75 0.082 2.914 (±0.006) 0.103 (±0.005) 2.934 (+0.03/-0.0) 0.225 (±0.005) 0.093 (±0.003) 15940 32140 Enquire Now
SHR-IHD-281 2.813 0.084 2.98 (±0.006) 0.103 (±0.005) 3.001 (+0.03/-0.0) 0.225 (±0.005) 0.093 (±0.003) 16700 32880 Enquire Now
SHR-IHD-283 2.834 0.086 3.006 (±0.006) 0.103 (±0.005) 3.027 (+0.03/-0.0) 0.225 (±0.005) 0.093 (±0.003) 17230 33120 Enquire Now
SHR-IHD-287 2.875 0.088 3.051 (±0.006) 0.103 (±0.005) 3.072 (+0.03/-0.0) 0.225 (±0.005) 0.093 (±0.003) 17880 33600 Enquire Now
SHR-IHD-300 3 0.091 3.182 (±0.006) 0.103 (±0.005) 3.204 (+0.03/-0.0) 0.225 (±0.005) 0.093 (±0.003) 18300 35060 Enquire Now
SHR-IHD-306 3.062 0.093 3.248 (±0.006) 0.12 (±0.005) 3.271 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 20130 42710 Enquire Now
SHR-IHD-312 3.125 0.095 3.315 (±0.006) 0.12 (±0.005) 3.338 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 20990 43590 Enquire Now
SHR-IHD-315 3.157 0.096 3.348 (±0.006) 0.12 (±0.005) 3.371 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 21420 44040 Enquire Now
SHR-IHD-325 3.25 0.098 3.446 (±0.006) 0.12 (±0.005) 3.47 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 22510 45330 Enquire Now
SHR-IHD-334 3.346 0.1 3.546 (±0.006) 0.12 (±0.005) 3.571 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 23650 46670 Enquire Now
SHR-IHD-347 3.464 0.105 3.675 (±0.006) 0.12 (±0.005) 3.701 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 25710 48320 Enquire Now
SHR-IHD-350 3.5 0.105 3.71 (±0.006) 0.12 (±0.005) 3.736 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 25980 48820 Enquire Now
SHR-IHD-354 3.543 0.106 3.755 (±0.006) 0.12 (±0.005) 3.781 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 26550 49420 Enquire Now
SHR-IHD-356 3.562 0.107 3.776 (±0.006) 0.12 (±0.005) 3.802 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 26940 49690 Enquire Now
SHR-IHD-362 3.625 0.108 3.841 (±0.006) 0.12 (±0.005) 3.868 (+0.035/-0.0) 0.281 (±0.005) 0.111 (±0.003) 27670 50560 Enquire Now
SHR-IHD-375 3.75 0.112 3.974 (±0.006) 0.12 (±0.005) 4.002 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 29690 52310 Enquire Now
SHR-IHD-387 3.875 0.116 4.107 (±0.006) 0.12 (±0.005) 4.136 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 31770 54050 Enquire Now
SHR-IHD-393 3.938 0.118 4.174 (±0.006) 0.12 (±0.005) 4.203 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 32850 54930 Enquire Now
SHR-IHD-400 4 0.12 4.24 (±0.006) 0.12 (±0.005) 4.27 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 33930 55800 Enquire Now
SHR-IHD-412 4.125 0.12 4.365 (±0.006) 0.12 (±0.005) 4.395 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 34990 57540 Enquire Now
SHR-IHD-425 4.25 0.12 4.49 (±0.006) 0.12 (±0.005) 4.52 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 36050 59280 Enquire Now
SHR-IHD-433 4.33 0.12 4.57 (±0.006) 0.12 (±0.005) 4.6 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 36730 60400 Enquire Now
SHR-IHD-450 4.5 0.12 4.74 (±0.006) 0.12 (±0.005) 4.77 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 38170 62770 Enquire Now
SHR-IHD-462 4.625 0.12 4.865 (±0.006) 0.12 (±0.005) 4.899 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 39230 64510 Enquire Now
SHR-IHD-475 4.75 0.123 4.995 (±0.006) 0.12 (±0.005) 5.03 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 41300 66260 Enquire Now
SHR-IHD-500 5 0.13 5.26 (±0.006) 0.12 (±0.005) 5.297 (+0.035/-0.0) 0.312 (±0.006) 0.111 (±0.003) 45950 69740 Enquire Now
SHR-IHD-525 5.25 0.135 5.52 (±0.007) 0.139 (±0.006) 5.559 (+0.05/-0.0) 0.35 (±0.006) 0.127 (±0.004) 50100 83790 Enquire Now
SHR-IHD-537 5.375 0.135 5.645 (±0.007) 0.139 (±0.006) 5.685 (+0.05/-0.0) 0.35 (±0.006) 0.127 (±0.004) 51290 85780 Enquire Now
SHR-IHD-550 5.5 0.135 5.77 (±0.007) 0.139 (±0.006) 5.81 (+0.05/-0.0) 0.35 (±0.006) 0.127 (±0.004) 52480 87780 Enquire Now
SHR-IHD-575 5.75 0.135 6.02 (±0.007) 0.139 (±0.006) 6.062 (+0.05/-0.0) 0.35 (±0.006) 0.127 (±0.004) 54870 91770 Enquire Now
SHR-IHD-600 6 0.135 6.27 (±0.007) 0.139 (±0.006) 6.314 (+0.05/-0.0) 0.35 (±0.006) 0.127 (±0.004) 57260 95760 Enquire Now
SHR-IHD-625 6.25 0.14 6.53 (±0.008) 0.174 (±0.008) 6.576 (+0.055/-0.0) 0.38 (±0.006) 0.156 (±0.005) 61850 122520 Enquire Now
SHR-IHD-650 6.5 0.145 6.79 (±0.008) 0.174 (±0.008) 6.838 (+0.055/-0.0) 0.38 (±0.006) 0.156 (±0.005) 66620 127420 Enquire Now
SHR-IHD-662 6.625 0.15 6.925 (±0.008) 0.174 (±0.008) 6.974 (+0.055/-0.0) 0.38 (±0.006) 0.156 (±0.005) 70240 129870 Enquire Now
SHR-IHD-675 6.75 0.153 7.055 (±0.008) 0.174 (±0.008) 7.105 (+0.055/-0.0) 0.38 (±0.006) 0.156 (±0.005) 73000 132320 Enquire Now
SHR-IHD-700 7 0.158 7.315 (±0.008) 0.174 (±0.008) 7.366 (+0.055/-0.0) 0.38 (±0.006) 0.156 (±0.005) 78180 137230 Enquire Now
SHR-IHD-725 7.25 0.163 7.575 (±0.008) 0.209 (±0.008) 7.628 (+0.07/-0.0) 0.418 (±0.007) 0.187 (±0.005) 83530 170370 Enquire Now
SHR-IHD-750 7.5 0.17 7.84 (±0.008) 0.209 (±0.008) 7.895 (+0.07/-0.0) 0.418 (±0.007) 0.187 (±0.005) 90120 176240 Enquire Now
SHR-IHD-775 7.75 0.175 8.1 (±0.008) 0.209 (±0.008) 8.157 (+0.07/-0.0) 0.418 (±0.007) 0.187 (±0.005) 95870 182120 Enquire Now
SHR-IHD-800 8 0.18 8.36 (±0.008) 0.209 (±0.008) 8.419 (+0.07/-0.0) 0.418 (±0.007) 0.187 (±0.005) 101790 187990 Enquire Now
SHR-IHD-825 8.25 0.185 8.62 (±0.008) 0.209 (±0.008) 8.68 (+0.07/-0.0) 0.437 (±0.007) 0.187 (±0.005) 107880 193870 Enquire Now
SHR-IHD-850 8.5 0.19 8.88 (±0.008) 0.209 (±0.008) 8.942 (+0.07/-0.0) 0.437 (±0.007) 0.187 (±0.005) 114160 199740 Enquire Now
SHR-IHD-875 8.75 0.198 9.145 (±0.008) 0.209 (±0.008) 9.209 (+0.07/-0.0) 0.437 (±0.007) 0.187 (±0.005) 122460 205620 Enquire Now
SHR-IHD-900 9 0.203 9.405 (±0.008) 0.209 (±0.008) 9.471 (+0.07/-0.0) 0.437 (±0.007) 0.187 (±0.005) 129140 211490 Enquire Now
SHR-IHD-925 9.25 0.21 9.669 (±0.008) 0.209 (±0.008) 9.737 (+0.07/-0.0) 0.437 (±0.007) 0.187 (±0.005) 137310 217370 Enquire Now
SHR-IHD-950 9.5 0.215 9.93 (±0.008) 0.209 (±0.008) 10 (+0.07/-0.0) 0.5 (±0.007) 0.187 (±0.005) 144380 223240 Enquire Now
SHR-IHD-975 9.75 0.22 10.189 (±0.008) 0.209 (±0.008) 10.26 (+0.07/-0.0) 0.5 (±0.007) 0.187 (±0.005) 150620 229,f20 Enquire Now
SHR-IHD-1000 10 0.225 10.45 (±0.008) 0.209 (±0.008) 10.523 (+0.07/-0.0) 0.5 (±0.007) 0.187 (±0.005) 159040 234990 Enquire Now
SHR-IHD-1025 10.25 0.235 10.711 (±0.008) 0.209 (±0.008) 10.786 (+0.07/-0.0) 0.5 (±0.007) 0.187 (±0.005) 174420 246740 Enquire Now
SHR-IHD-1050 10.5 0.231 10.97 (±0.008) 0.209 (±0.008) 11.047 (+0.07/-0.0) 0.5 (±0.007) 0.187 (±0.005) 167370 240870 Enquire Now
SHR-IHD-1075 10.75 0.242 11.234 (±0.01) 0.209 (±0.008) 11.313 (+0.12/-0.0) 0.5 (±0.007) 0.187 (±0.005) 183890 252620 Enquire Now
SHR-IHD-1100 11 0.248 11.495 (±0.01) 0.209 (±0.008) 11.575 (+0.12/-0.0) 0.5 (±0.007) 0.187 (±0.005) 192830 258490 Enquire Now
SHR-IHD-1125 11.25 0.253 11.756 (±0.01) 0.209 (±0.008) 11.838 (+0.12/-0.0) 0.5 (±0.007) 0.187 (±0.005) 201190 264370 Enquire Now
SHR-IHD-1150 11.5 0.259 12.018 (±0.01) 0.209 (±0.008) 12.102 (+0.12/-0.0) 0.562 (±0.015) 0.187 (±0.005) 210540 270240 Enquire Now
SHR-IHD-1175 11.75 0.265 12.279 (±0.01) 0.209 (±0.008) 12.365 (+0.12/-0.0) 0.562 (±0.015) 0.187 (±0.005) 220100 276120 Enquire Now
SHR-IHD-1200 12 0.27 12.54 (±0.01) 0.209 (±0.008) 12.628 (+0.12/-0.0) 0.562 (±0.015) 0.187 (±0.005) 229020 281990 Enquire Now
SHR-IHD-1225 12.25 0.276 12.801 (±0.01) 0.209 (±0.008) 12.891 (+0.12/-0.0) 0.562 (±0.015) 0.187 (±0.005) 238990 287860 Enquire Now
SHR-IHD-1250 12.5 0.282 13.063 (±0.01) 0.209 (±0.008) 13.154 (+0.12/-0.0) 0.562 (±0.015) 0.187 (±0.005) 249170 293740 Enquire Now
SHR-IHD-1275 12.75 0.287 13.324 (±0.012) 0.209 (±0.008) 13.417 (+0.12/-0.0) 0.562 (±0.015) 0.187 (±0.005) 258660 299610 Enquire Now
SHR-IHD-1300 13 0.293 13.585 (±0.012) 0.209 (±0.008) 13.68 (+0.14/-0.0) 0.662 (±0.015) 0.187 (±0.005) 269240 305490 Enquire Now
SHR-IHD-1325 13.25 0.298 13.846 (±0.012) 0.209 (±0.008) 13.943 (+0.14/-0.0) 0.662 (±0.015) 0.187 (±0.005) 279100 311360 Enquire Now
SHR-IHD-1350 13.5 0.304 14.108 (±0.012) 0.209 (±0.008) 14.207 (+0.14/-0.0) 0.662 (±0.015) 0.187 (±0.005) 290100 317240 Enquire Now
SHR-IHD-1375 13.75 0.31 14.369 (±0.012) 0.209 (±0.008) 14.47 (+0.14/-0.0) 0.662 (±0.015) 0.187 (±0.005) 301300 323110 Enquire Now
SHR-IHD-1400 14 0.315 14.63 (±0.012) 0.209 (±0.008) 14.732 (+0.14/-0.0) 0.662 (±0.015) 0.187 (±0.005) 311730 328990 Enquire Now
SHR-IHD-1425 14.25 0.321 14.891 (±0.012) 0.209 (±0.008) 14.995 (+0.14/-0.0) 0.662 (±0.015) 0.187 (±0.005) 323340 334860 Enquire Now
SHR-IHD-1450 14.5 0.327 15.153 (±0.012) 0.209 (±0.008) 15.259 (+0.14/-0.0) 0.75 (±0.015) 0.187 (±0.005) 335160 340740 Enquire Now
SHR-IHD-1475 14.75 0.332 15.414 (±0.012) 0.209 (±0.008) 15.522 (+0.14/-0.0) 0.75 (±0.015) 0.187 (±0.005) 346150 346610 Enquire Now
SHR-IHD-1500 15 0.338 15.675 (±0.012) 0.209 (±0.008) 15.785 (+0.14/-0.0) 0.75 (±0.015) 0.187 (±0.005) 358380 352490 Enquire Now
