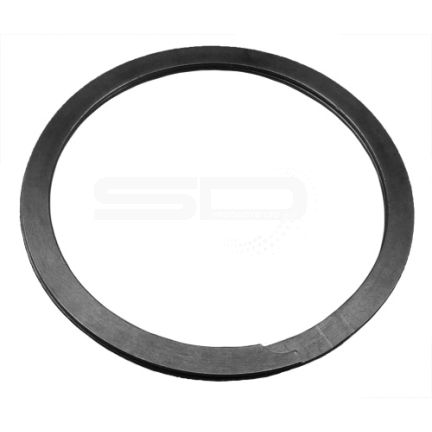

SHR-IMI Spiral Retaining Rings
Product Description
Internal, Medium Duty
These rings offer the greatest economy in price and size. They are able to handle approximately twice the thrust capacity of the SHR-ILD series, and to be produced to military specifications if needed.
| Product Code | Shaft Dia. (In.) Ds | Groove Depth (d) | Groove Dia. (Dg and Tol.) | Groove Width (W and Tol.) | Ring Free Dia. (Df and Tol.) | Ring Section (S and Tol.) | Ring Thickness (T and Tol.) | Thrust Load (lbs.) Groove Safety Factor of 2 | Thrust Load (lbs.) Ring Safety Factor of 3 | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| SHR-IMI-50 | 0.5 | 0.013 | 0.526 (±0.002) | 0.03 (±0.003) | 0.532 (+0.013/-0.0) | 0.045 (±0.004) | 0.025 (±0.002) | 460 | 2000 | Enquire Now |
| SHR-IMI-51 | 0.512 | 0.013 | 0.538 (±0.002) | 0.03 (±0.003) | 0.544 (+0.013/-0.0) | 0.045 (±0.004) | 0.025 (±0.002) | 470 | 2050 | Enquire Now |
| SHR-IMI-53 | 0.531 | 0.013 | 0.557 (±0.002) | 0.03 (±0.003) | 0.564 (+0.013/-0.0) | 0.045 (±0.004) | 0.025 (±0.002) | 490 | 2130 | Enquire Now |
| SHR-IMI-62 | 0.625 | 0.013 | 0.651 (±0.002) | 0.03 (±0.003) | 0.658 (+0.013/-0.0) | 0.045 (±0.004) | 0.025 (±0.002) | 570 | 2500 | Enquire Now |
| SHR-IMI-65 | 0.656 | 0.013 | 0.682 (±0.002) | 0.03 (±0.003) | 0.689 (+0.013/-0.0) | 0.045 (±0.004) | 0.025 (±0.002) | 600 | 2630 | Enquire Now |
| SHR-IMI-68 | 0.687 | 0.013 | 0.713 (±0.002) | 0.03 (±0.003) | 0.72 (+0.013/-0.0) | 0.045 (±0.004) | 0.025 (±0.002) | 630 | 2750 | Enquire Now |
| SHR-IMI-75 | 0.75 | 0.016 | 0.782 (±0.002) | 0.036 (±0.003) | 0.79 (+0.013/-0.0) | 0.065 (±0.004) | 0.031 (±0.002) | 850 | 3360 | Enquire Now |
| SHR-IMI-77 | 0.777 | 0.016 | 0.808 (±0.003) | 0.036 (±0.003) | 0.817 (+0.013/-0.0) | 0.065 (±0.004) | 0.031 (±0.002) | 880 | 3480 | Enquire Now |
| SHR-IMI-78 | 0.781 | 0.016 | 0.812 (±0.003) | 0.036 (±0.003) | 0.821 (+0.013/-0.0) | 0.065 (±0.004) | 0.031 (±0.002) | 880 | 3500 | Enquire Now |
| SHR-IMI-81 | 0.812 | 0.016 | 0.843 (±0.003) | 0.036 (±0.003) | 0.853 (+0.013/-0.0) | 0.065 (±0.004) | 0.031 (±0.002) | 920 | 3640 | Enquire Now |
| SHR-IMI-86 | 0.866 | 0.019 | 0.903 (±0.003) | 0.036 (±0.003) | 0.913 (+0.013/-0.0) | 0.065 (±0.004) | 0.031 (±0.002) | 1160 | 3880 | Enquire Now |
| SHR-IMI-87 | 0.875 | 0.019 | 0.912 (±0.003) | 0.036 (±0.003) | 0.922 (+0.013/-0.0) | 0.065 (±0.004) | 0.031 (±0.002) | 1180 | 3920 | Enquire Now |
| SHR-IMI-90 | 0.906 | 0.019 | 0.943 (±0.003) | 0.036 (±0.003) | 0.953 (+0.013/-0.0) | 0.065 (±0.004) | 0.031 (±0.002) | 1220 | 4060 | Enquire Now |
| SHR-IMI-93 | 0.938 | 0.019 | 0.975 (±0.003) | 0.036 (±0.003) | 0.986 (+0.013/-0.0) | 0.065 (±0.004) | 0.031 (±0.002) | 1260 | 4200 | Enquire Now |
| SHR-IMI-98 | 0.987 | 0.021 | 1.03 (±0.003) | 0.042 (±0.003) | 1.041 (+0.013/-0.0) | 0.075 (±0.004) | 0.037 (±0.002) | 1470 | 5280 | Enquire Now |
| SHR-IMI-100 | 1 | 0.021 | 1.043 (±0.003) | 0.042 (±0.003) | 1.054 (+0.013/-0.0) | 0.075 (±0.004) | 0.037 (±0.002) | 1480 | 5350 | Enquire Now |
| SHR-IMI-102 | 1.023 | 0.021 | 1.066 (±0.003) | 0.042 (±0.003) | 1.078 (+0.013/-0.0) | 0.075 (±0.004) | 0.037 (±0.002) | 1520 | 5470 | Enquire Now |
| SHR-IMI-103 | 1.031 | 0.021 | 1.074 (±0.003) | 0.042 (±0.003) | 1.084 (+0.013/-0.0) | 0.075 (±0.004) | 0.037 (±0.002) | 1530 | 5510 | Enquire Now |
| SHR-IMI-109 | 1.093 | 0.021 | 1.135 (±0.004) | 0.042 (±0.003) | 1.147 (+0.015/-0.0) | 0.075 (±0.004) | 0.037 (±0.002) | 1620 | 5840 | Enquire Now |
| SHR-IMI-112 | 1.125 | 0.021 | 1.167 (±0.004) | 0.042 (±0.003) | 1.18 (+0.015/-0.0) | 0.075 (±0.004) | 0.037 (±0.002) | 1670 | 6020 | Enquire Now |
| SHR-IMI-115 | 1.156 | 0.021 | 1.198 (±0.004) | 0.042 (±0.003) | 1.21 (+0.015/-0.0) | 0.075 (±0.004) | 0.037 (±0.002) | 1720 | 6180 | Enquire Now |
| SHR-IMI-118 | 1.188 | 0.024 | 1.236 (±0.004) | 0.048 (±0.004) | 1.249 (+0.015/-0.0) | 0.085 (±0.004) | 0.043 (±0.002) | 2020 | 7380 | Enquire Now |
| SHR-IMI-125 | 1.25 | 0.024 | 1.298 (±0.004) | 0.048 (±0.004) | 1.312 (+0.015/-0.0) | 0.085 (±0.004) | 0.043 (±0.002) | 2120 | 7770 | Enquire Now |
| SHR-IMI-128 | 1.281 | 0.024 | 1.329 (±0.004) | 0.048 (±0.004) | 1.342 (+0.015/-0.0) | 0.085 (±0.004) | 0.043 (±0.002) | 2170 | 7960 | Enquire Now |
| SHR-IMI-131 | 1.312 | 0.024 | 1.36 (±0.004) | 0.048 (±0.004) | 1.374 (+0.015/-0.0) | 0.085 (±0.004) | 0.043 (±0.002) | 2230 | 8150 | Enquire Now |
| SHR-IMI-134 | 1.343 | 0.026 | 1.395 (±0.004) | 0.048 (±0.004) | 1.408 (+0.015/-0.0) | 0.085 (±0.004) | 0.043 (±0.002) | 2470 | 8350 | Enquire Now |
| SHR-IMI-140 | 1.406 | 0.026 | 1.458 (±0.004) | 0.048 (±0.004) | 1.472 (+0.015/-0.0) | 0.095 (±0.004) | 0.043 (±0.002) | 2580 | 8740 | Enquire Now |
| SHR-IMI-143 | 1.437 | 0.026 | 1.489 (±0.004) | 0.048 (±0.004) | 1.504 (+0.015/-0.0) | 0.095 (±0.004) | 0.043 (±0.002) | 2640 | 8930 | Enquire Now |
| SHR-IMI-145 | 1.456 | 0.026 | 1.508 (±0.004) | 0.048 (±0.004) | 1.523 (+0.015/-0.0) | 0.095 (±0.004) | 0.043 (±0.002) | 2680 | 9050 | Enquire Now |
| SHR-IMI-146 | 1.468 | 0.026 | 1.52 (±0.004) | 0.048 (±0.004) | 1.535 (+0.015/-0.0) | 0.095 (±0.004) | 0.043 (±0.002) | 2700 | 9120 | Enquire Now |
| SHR-IMI-156 | 1.562 | 0.028 | 1.617 (±0.004) | 0.056 (±0.004) | 1.634 (+0.02/-0.0) | 0.108 (±0.004) | 0.049 (±0.003) | 3090 | 10100 | Enquire Now |
| SHR-IMI-157 | 1.574 | 0.03 | 1.633 (±0.004) | 0.056 (±0.004) | 1.649 (+0.02/-0.0) | 0.108 (±0.004) | 0.049 (±0.003) | 3340 | 10180 | Enquire Now |
| SHR-IMI-162 | 1.625 | 0.03 | 1.684 (±0.004) | 0.056 (±0.004) | 1.701 (+0.02/-0.0) | 0.108 (±0.004) | 0.049 (±0.003) | 3350 | 10510 | Enquire Now |
| SHR-IMI-165 | 1.653 | 0.03 | 1.712 (±0.004) | 0.056 (±0.004) | 1.73 (+0.02/-0.0) | 0.108 (±0.004) | 0.049 (±0.003) | 3510 | 10690 | Enquire Now |
| SHR-IMI-175 | 1.75 | 0.031 | 1.813 (±0.004) | 0.056 (±0.004) | 1.834 (+0.02/-0.0) | 0.118 (±0.004) | 0.049 (±0.003) | 3840 | 11310 | Enquire Now |
| SHR-IMI-181 | 1.813 | 0.031 | 1.875 (±0.004) | 0.056 (±0.004) | 1.894 (+0.02/-0.0) | 0.118 (±0.004) | 0.049 (±0.003) | 3970 | 11720 | Enquire Now |
| SHR-IMI-185 | 1.85 | 0.034 | 1.917 (±0.004) | 0.056 (±0.004) | 1.937 (+0.02/-0.0) | 0.118 (±0.004) | 0.049 (±0.003) | 4450 | 11960 | Enquire Now |
| SHR-IMI-187 | 1.875 | 0.034 | 1.942 (±0.004) | 0.056 (±0.004) | 1.96 (+0.02/-0.0) | 0.118 (±0.004) | 0.049 (±0.003) | 4510 | 12120 | Enquire Now |
| SHR-IMI-200 | 2 | 0.035 | 2.071 (±0.004) | 0.056 (±0.004) | 2.091 (+0.02/-0.0) | 0.128 (±0.004) | 0.049 (±0.003) | 4950 | 12930 | Enquire Now |
| SHR-IMI-204 | 2.047 | 0.035 | 2.118 (±0.004) | 0.056 (±0.004) | 2.138 (+0.02/-0.0) | 0.128 (±0.004) | 0.049 (±0.003) | 5060 | 18240 | Enquire Now |
| SHR-IMI-206 | 2.062 | 0.035 | 2.132 (±0.006) | 0.056 (±0.004) | 2.154 (+0.025/-0.0) | 0.128 (±0.004) | 0.049 (±0.003) | 5100 | 13330 | Enquire Now |
| SHR-IMI-218 | 2.188 | 0.037 | 2.262 (±0.006) | 0.056 (±0.004) | 2.284 (+0.025/-0.0) | 0.138 (±0.004) | 0.049 (±0.003) | 5720 | 14150 | Enquire Now |
| SHR-IMI-225 | 2.25 | 0.037 | 2.324 (±0.006) | 0.056 (±0.004) | 2.347 (+0.025/-0.0) | 0.138 (±0.004) | 0.049 (±0.003) | 5890 | 14550 | Enquire Now |
| SHR-IMI-231 | 2.312 | 0.039 | 2.39 (±0.006) | 0.056 (±0.004) | 2.413 (+0.025/-0.0) | 0.138 (±0.004) | 0.049 (±0.003) | 6370 | 14950 | Enquire Now |
| SHR-IMI-244 | 2.44 | 0.041 | 2.522 (±0.006) | 0.056 (±0.004) | 2.546 (+0.025/-0.0) | 0.148 (±0.004) | 0.049 (±0.003) | 7070 | 15780 | Enquire Now |
| SHR-IMI-250 | 2.5 | 0.041 | 2.582 (±0.006) | 0.056 (±0.004) | 2.606 (+0.025/-0.0) | 0.148 (±0.004) | 0.049 (±0.003) | 7250 | 16160 | Enquire Now |
| SHR-IMI-253 | 2.531 | 0.043 | 2.617 (±0.006) | 0.056 (±0.004) | 2.641 (+0.025/-0.0) | 0.148 (±0.004) | 0.049 (±0.003) | 7690 | 16360 | Enquire Now |
| SHR-IMI-267 | 2.677 | 0.045 | 2.767 (±0.006) | 0.056 (±0.004) | 2.789 (+0.025/-0.0) | 0.158 (±0.004) | 0.049 (±0.003) | 8520 | 17310 | Enquire Now |
| SHR-IMI-268 | 2.688 | 0.045 | 2.778 (±0.006) | 0.056 (±0.004) | 2.803 (+0.025/-0.0) | 0.158 (±0.004) | 0.049 (±0.003) | 8550 | 17380 | Enquire Now |
| SHR-IMI-275 | 2.75 | 0.045 | 2.841 (±0.006) | 0.056 (±0.004) | 2.865 (+0.025/-0.0) | 0.158 (±0.004) | 0.049 (±0.003) | 8750 | 17780 | Enquire Now |
| SHR-IMI-287 | 2.875 | 0.047 | 2.969 (±0.006) | 0.056 (±0.004) | 2.995 (+0.025/-0.0) | 0.168 (±0.005) | 0.049 (±0.003) | 9550 | 18590 | Enquire Now |
| SHR-IMI-293 | 2.937 | 0.047 | 3.031 (±0.006) | 0.056 (±0.004) | 3.058 (+0.025/-0.0) | 0.168 (±0.005) | 0.049 (±0.003) | 9760 | 18990 | Enquire Now |
| SHR-IMI-295 | 2.952 | 0.047 | 3.046 (±0.006) | 0.056 (±0.004) | 3.073 (+0.025/-0.0) | 0.168 (±0.005) | 0.049 (±0.003) | 9810 | 19090 | Enquire Now |
| SHR-IMI-312 | 3.125 | 0.048 | 3.223 (±0.006) | 0.068 (±0.005) | 3.251 (+0.03/-0.0) | 0.178 (±0.005) | 0.061 (±0.003) | 10600 | 25150 | Enquire Now |
| SHR-IMI-314 | 3.149 | 0.048 | 3.247 (±0.006) | 0.068 (±0.005) | 3.276 (+0.03/-0.0) | 0.178 (±0.005) | 0.061 (±0.003) | 10680 | 25350 | Enquire Now |
| SHR-IMI-318 | 3.187 | 0.048 | 3.283 (±0.006) | 0.068 (±0.005) | 3.311 (+0.03/-0.0) | 0.178 (±0.005) | 0.061 (±0.003) | 10810 | 25650 | Enquire Now |
| SHR-IMI-334 | 3.346 | 0.052 | 3.45 (±0.006) | 0.068 (±0.005) | 3.479 (+0.03/-0.0) | 0.188 (±0.005) | 0.061 (±0.003) | 12300 | 26930 | Enquire Now |
| SHR-IMI-337 | 3.375 | 0.052 | 3.479 (±0.006) | 0.068 (±0.005) | 3.509 (+0.03/-0.0) | 0.188 (±0.005) | 0.061 (±0.003) | 12410 | 27170 | Enquire Now |
| SHR-IMI-343 | 3.437 | 0.053 | 3.543 (±0.006) | 0.068 (±0.005) | 3.574 (+0.03/-0.0) | 0.188 (±0.005) | 0.061 (±0.003) | 12880 | 27660 | Enquire Now |
| SHR-IMI-356 | 3.562 | 0.055 | 3.672 (±0.006) | 0.068 (±0.005) | 3.703 (+0.03/-0.0) | 0.198 (±0.005) | 0.061 (±0.003) | 13850 | 28670 | Enquire Now |
| SHR-IMI-362 | 3.625 | 0.056 | 3.737 (±0.006) | 0.068 (±0.005) | 3.769 (+0.03/-0.0) | 0.198 (±0.005) | 0.061 (±0.003) | 14350 | 29180 | Enquire Now |
| SHR-IMI-368 | 3.687 | 0.056 | 3.799 (±0.006) | 0.068 (±0.005) | 3.832 (+0.03/-0.0) | 0.198 (±0.005) | 0.061 (±0.003) | 14600 | 29680 | Enquire Now |
| SHR-IMI-375 | 3.75 | 0.056 | 3.862 (±0.006) | 0.068 (±0.005) | 3.894 (+0.03/-0.0) | 0.198 (±0.005) | 0.061 (±0.003) | 14840 | 30180 | Enquire Now |
| SHR-IMI-381 | 3.812 | 0.059 | 3.93 (±0.006) | 0.068 (±0.005) | 3.963 (+0.03/-0.0) | 0.208 (±0.005) | 0.061 (±0.003) | 15900 | 30680 | Enquire Now |
| SHR-IMI-387 | 3.875 | 0.059 | 3.993 (±0.006) | 0.068 (±0.005) | 4.025 (+0.03/-0.0) | 0.208 (±0.005) | 0.061 (±0.003) | 16160 | 31190 | Enquire Now |
| SHR-IMI-393 | 3.938 | 0.059 | 4.056 (±0.006) | 0.068 (±0.005) | 4.089 (+0.03/-0.0) | 0.208 (±0.005) | 0.061 (±0.003) | 16420 | 31700 | Enquire Now |
| SHR-IMI-406 | 4.063 | 0.062 | 4.187 (±0.006) | 0.068 (±0.005) | 4.222 (+0.03/-0.0) | 0.218 (±0.005) | 0.061 (±0.003) | 17810 | 32700 | Enquire Now |
| SHR-IMI-412 | 4.125 | 0.062 | 4.249 (±0.006) | 0.068 (±0.005) | 4.284 (+0.035/-0.0) | 0.218 (±0.005) | 0.061 (±0.003) | 18080 | 33200 | Enquire Now |
| SHR-IMI-418 | 4.188 | 0.062 | 4.311 (±0.006) | 0.068 (±0.005) | 4.347 (+0.035/-0.0) | 0.218 (±0.005) | 0.061 (±0.003) | 18350 | 33710 | Enquire Now |
| SHR-IMI-425 | 4.25 | 0.065 | 4.38 (±0.006) | 0.068 (±0.005) | 4.416 (+0.035/-0.0) | 0.228 (±0.005) | 0.061 (±0.003) | 19530 | 34210 | Enquire Now |
| SHR-IMI-433 | 4.33 | 0.065 | 4.46 (±0.006) | 0.068 (±0.005) | 4.497 (+0.035/-0.0) | 0.228 (±0.005) | 0.061 (±0.003) | 19900 | 34850 | Enquire Now |
| SHR-IMI-437 | 4.375 | 0.065 | 4.505 (±0.006) | 0.068 (±0.005) | 4.543 (+0.035/-0.0) | 0.228 (±0.005) | 0.061 (±0.003) | 20100 | 35210 | Enquire Now |
| SHR-IMI-443 | 4.437 | 0.068 | 4.573 (±0.006) | 0.068 (±0.005) | 4.611 (+0.035/-0.0) | 0.238 (±0.005) | 0.061 (±0.003) | 21330 | 35710 | Enquire Now |
| SHR-IMI-450 | 4.5 | 0.068 | 4.636 (±0.006) | 0.068 (±0.005) | 4.674 (+0.035/-0.0) | 0.238 (±0.005) | 0.061 (±0.003) | 21630 | 36220 | Enquire Now |
| SHR-IMI-456 | 4.562 | 0.068 | 4.698 (±0.006) | 0.068 (±0.005) | 4.737 (+0.035/-0.0) | 0.238 (±0.005) | 0.061 (±0.003) | 21930 | 36720 | Enquire Now |
| SHR-IMI-462 | 4.625 | 0.07 | 4.765 (±0.006) | 0.079 (±0.005) | 4.803 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 22890 | 43940 | Enquire Now |
| SHR-IMI-468 | 4.687 | 0.07 | 4.827 (±0.006) | 0.079 (±0.005) | 4.867 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 23190 | 44530 | Enquire Now |
| SHR-IMI-472 | 4.724 | 0.07 | 4.864 (±0.006) | 0.079 (±0.005) | 4.903 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 23370 | 44880 | Enquire Now |
| SHR-IMI-481 | 4.812 | 0.07 | 4.952 (±0.006) | 0.079 (±0.005) | 4.993 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 23810 | 45720 | Enquire Now |
| SHR-IMI-487 | 4.875 | 0.07 | 5.015 (±0.006) | 0.079 (±0.005) | 5.055 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 24120 | 46310 | Enquire Now |
| SHR-IMI-492 | 4.921 | 0.07 | 5.061 (±0.006) | 0.079 (±0.005) | 5.102 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 24350 | 46750 | Enquire Now |
| SHR-IMI-493 | 4.937 | 0.072 | 5.081 (±0.006) | 0.079 (±0.005) | 5.122 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 25130 | 46900 | Enquire Now |
| SHR-IMI-511 | 5.118 | 0.072 | 5.262 (±0.006) | 0.079 (±0.005) | 5.304 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 26050 | 48620 | Enquire Now |
| SHR-IMI-512 | 5.125 | 0.072 | 5.269 (±0.006) | 0.079 (±0.005) | 5.311 (+0.035/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 26100 | 48690 | Enquire Now |
| SHR-IMI-525 | 5.25 | 0.072 | 5.393 (±0.007) | 0.079 (±0.005) | 5.436 (+0.045/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 26720 | 49880 | Enquire Now |
| SHR-IMI-551 | 5.511 | 0.074 | 5.658 (±0.007) | 0.079 (±0.005) | 5.703 (+0.045/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 28830 | 52360 | Enquire Now |
| SHR-IMI-562 | 5.625 | 0.074 | 5.772 (±0.007) | 0.079 (±0.005) | 5.818 (+0.045/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 29400 | 53440 | Enquire Now |
| SHR-IMI-570 | 5.708 | 0.077 | 5.861 (±0.007) | 0.079 (±0.005) | 5.909 (+0.045/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 31070 | 54230 | Enquire Now |
| SHR-IMI-590 | 5.905 | 0.077 | 6.058 (±0.007) | 0.079 (±0.005) | 6.106 (+0.045/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 32140 | 56100 | Enquire Now |
| SHR-IMI-600 | 6 | 0.077 | 6.153 (±0.007) | 0.079 (±0.005) | 6.202 (+0.045/-0.0) | 0.25 (±0.005) | 0.072 (±0.004) | 32660 | 57000 | Enquire Now |
| SHR-IMI-612 | 6.125 | 0.086 | 6.297 (±0.008) | 0.094 (±0.006) | 6.349 (+0.045/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 37200 | 69500 | Enquire Now |
| SHR-IMI-637 | 6.375 | 0.086 | 6.547 (±0.008) | 0.094 (±0.006) | 6.601 (+0.055/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 38750 | 72340 | Enquire Now |
| SHR-IMI-650 | 6.5 | 0.086 | 6.672 (±0.008) | 0.094 (±0.006) | 6.726 (+0.055/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 39510 | 73760 | Enquire Now |
| SHR-IMI-662 | 6.625 | 0.091 | 6.807 (±0.008) | 0.094 (±0.006) | 6.863 (+0.055/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 42620 | 75180 | Enquire Now |
| SHR-IMI-687 | 6.875 | 0.091 | 7.057 (±0.008) | 0.094 (±0.006) | 7.114 (+0.055/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 44220 | 78010 | Enquire Now |
| SHR-IMI-700 | 7 | 0.091 | 7.182 (±0.008) | 0.094 (±0.006) | 7.239 (+0.055/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 45030 | 79430 | Enquire Now |
| SHR-IMI-708 | 7.086 | 0.096 | 7.278 (±0.008) | 0.094 (±0.006) | 7.337 (+0.055/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 48080 | 80410 | Enquire Now |
| SHR-IMI-737 | 7.375 | 0.096 | 7.567 (±0.008) | 0.094 (±0.006) | 7.628 (+0.065/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 50050 | 83690 | Enquire Now |
| SHR-IMI-748 | 7.48 | 0.096 | 7.672 (±0.008) | 0.094 (±0.006) | 7.734 (+0.065/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 50760 | 84880 | Enquire Now |
| SHR-IMI-750 | 7.5 | 0.096 | 7.692 (±0.008) | 0.094 (±0.006) | 7.754 (+0.065/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 50890 | 85110 | Enquire Now |
| SHR-IMI-787 | 7.875 | 0.101 | 8.077 (±0.008) | 0.094 (±0.006) | 8.141 (+0.065/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 63360 | 89360 | Enquire Now |
| SHR-IMI-800 | 8 | 0.101 | 8.202 (±0.008) | 0.094 (±0.006) | 8.266 (+0.065/-0.0) | 0.312 (±0.006) | 0.086 (±0.004) | 57110 | 90780 | Enquire Now |
| SHR-IMI-825 | 8.25 | 0.106 | 8.462 (±0.008) | 0.094 (±0.006) | 8.528 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 61820 | 93620 | Enquire Now |
| SHR-IMI-850 | 8.5 | 0.106 | 8.712 (±0.008) | 0.094 (±0.006) | 8.78 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 63690 | 96450 | Enquire Now |
| SHR-IMI-875 | 8.75 | 0.111 | 8.972 (±0.008) | 0.094 (±0.006) | 9.041 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 68650 | 99290 | Enquire Now |
| SHR-IMI-885 | 8.858 | 0.111 | 9.08 (±0.008) | 0.094 (±0.006) | 9.151 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 69500 | 100520 | Enquire Now |
| SHR-IMI-905 | 9.055 | 0.116 | 9.287 (±0.008) | 0.094 (±0.006) | 9.359 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 74250 | 102750 | Enquire Now |
| SHR-IMI-925 | 9.25 | 0.116 | 9.482 (±0.008) | 0.094 (±0.006) | 9.555 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 75850 | 104960 | Enquire Now |
| SHR-IMI-944 | 9.448 | 0.116 | 9.68 (±0.008) | 0.094 (±0.006) | 9.755 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 77470 | 107210 | Enquire Now |
| SHR-IMI-950 | 9.5 | 0.116 | 9.732 (±0.008) | 0.094 (±0.006) | 9.806 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 77900 | 107800 | Enquire Now |
| SHR-IMI-1000 | 10 | 0.121 | 10.242 (±0.008) | 0.094 (±0.006) | 10.32 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 85530 | 113470 | Enquire Now |
| SHR-IMI-1025 | 10.25 | 0.126 | 10.502 (±0.008) | 0.094 (±0.006) | 10.582 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 91290 | 116310 | Enquire Now |
| SHR-IMI-1050 | 10.5 | 0.126 | 10.752 (±0.008) | 0.094 (±0.006) | 10.834 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 93520 | 119150 | Enquire Now |
| SHR-IMI-1075 | 10.75 | 0.131 | 11.012 (±0.008) | 0.094 (±0.006) | 11.095 (+0.065/-0.0) | 0.375 (±0.006) | 0.086 (±0.004) | 99540 | 121990 | Enquire Now |
