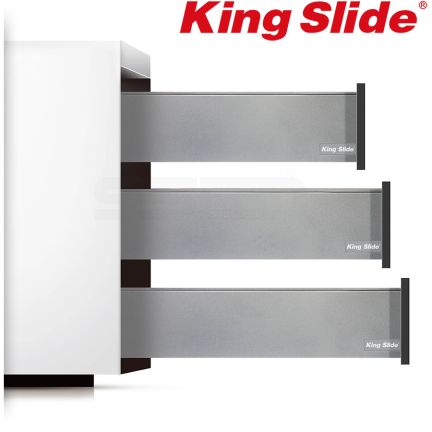

SIMLEAD Metal Drawer System - Grey - MADA-185-1N86-400-GREY
An elegant all-mechanical drawer system with 13mm metal walls and full extension. Hands-free drawer opening with just a light touch, especially when your hands are busy. The drawer opens with a gentle ejection force and stops softly if it hits an object. To extend the drawer, simply touch again to slide out.
Switchable Push Open Design
A 2-in-1 solution: you can easily change from a dual-function setting with push open and soft close to a soft close only setting at a flip of a switch.
Designed for Convenience
Push any point on the front panel to open the drawer.
Easy Assembly & Removal
The built-in locking devices simplify installation: place the metal box onto the slides and push to close to complete the installation; press the locking devices to lift and remove the drawer.
- 8-Way Adjustment
- Depth (In & Out) Adjustment: +/-2.5mm
- Side-to-side (Left & Right) Adjustment: +/-1.5mm
- Height (Up & Down) Adjustment: +/-2mm
- Tilt Adjustment
Front panel alignment can be precisely done with our built-in mechanisms.
| Load Capacity | Extension | Sizes | Features |
|---|---|---|---|
| 40kg | 100% | 400mm | Push Open + Soft Close |
