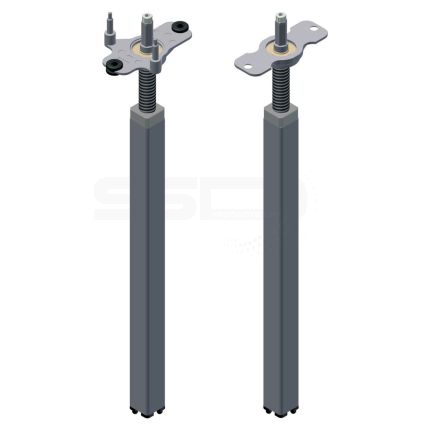

Single stroke telescopic spindle unit 3130.14
Product Description
Motorized solution for the individual sit-stand workplace. Smooth running, stepless height adjustment to customer specific stroke.
Special features
High movement speed, single telescopic function with max. stroke, simple mounting, suitable for the driving with Ketterer motor 3133.
Customer specific
As a result of the modular design it is possible to meet special customer requirements even for small quantities. The actuator can be supplied in various lengths and pitches of the spindle.
Caution
Please take into account that depending on the spindle pitch, the system could back-drive.
* in combination with motor 3133 and LogicData control box Compact-3
| Product Code | Movement | Stroke max. | Type of spindle | Max. lifting force | Movement speed | No. of Packs |
|---|---|---|---|---|---|---|
| 3130.14-V02EXXXHXXX | 20 mm/rev | retracted length -64 mm | SG14x20P4 RH | 900 N | 40 mm/s * | Enquire Now |
| 3130.14-V01EXXXHXXX | 20 mm/rev | retracted length -64 mm | SG14x20P4 RH | 900 N | 40 mm/s * | Enquire Now |
