SR-EPOM Shaft Rings - SR-EPOM-22
Product Description
Self-Locking, External “Push-On”, Metric

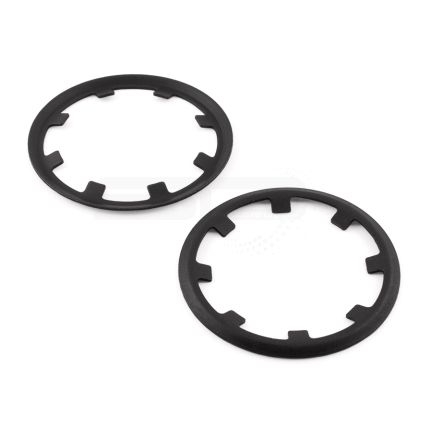

This ring features a curved outer rim with a series of prongs protruding into the centre. The ends create interference with the shaft when the ring is installed and a load introduced to the other side.
| Shaft Diameter (Ds and Tol.) | Thickness T | Groove Dimensions (Dg and Tol.) | Groove Dimensions (W Min) | Edge Margin Y | Inside Diameter (I.D.) | Minimum Distance | Number of Prongs | Outside Diameter (O.D.) | Thrust Load N |
|---|---|---|---|---|---|---|---|---|---|
| 22 (+0.0/-0.13) | 0.5 | 21.75 (-0.13) | 1 | 2 | 21.5 | 3.5 | 8 | 31 | 1000 |
£10.06
- Buy 10 packs for £6.92 each and save 30%
- Buy 50 packs for £5.52 each and save 40%
- Buy 100 packs for £4.42 each and save 60%
SR-EPOM Shaft Rings - SR-EPOM-22 is available to buy in increments of 100
