SR-EPOM Shaft Rings - SR-EPOM-25
Product Description
Self-Locking, External “Push-On”, Metric

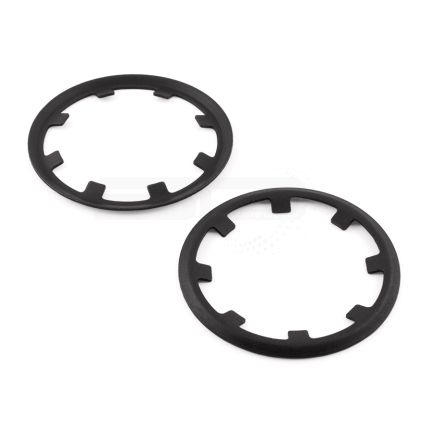

This ring features a curved outer rim with a series of prongs protruding into the centre. The ends create interference with the shaft when the ring is installed and a load introduced to the other side.
| Shaft Diameter (Ds and Tol.) | Thickness T | Groove Dimensions (Dg and Tol.) | Groove Dimensions (W Min) | Edge Margin Y | Inside Diameter (I.D.) | Minimum Distance | Number of Prongs | Outside Diameter (O.D.) | Thrust Load N |
|---|---|---|---|---|---|---|---|---|---|
| 25 (+0.0/-0.13) | 0.5 | 24.75 (-0.13) | 1 | 2 | 24.5 | 4 | 8 | 34 | 1100 |
Special Price
£10.46
Regular Price
£10.46
- Buy 100 packs for £5.22 each and save 17%
SR-EPOM Shaft Rings - SR-EPOM-25 is available to buy in increments of 100
