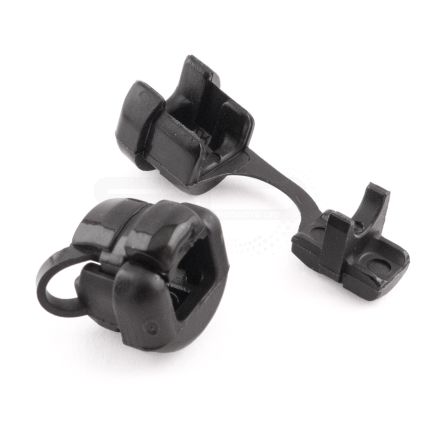

Strain Relief Bushing Round Cable
Product Description
Strain Relief Bushings are a cost effective assembly, that securely anchors and protects cables at the point of entry.
Material
Nylon
Finish
Black
Specials
Further sizes and types are available. Please contact our sales office for more information.
| Product Code | Cable Dimensions | A Hole Ø | B Prevent Rotation | Max Thickness | C Length | No. of Packs |
|---|---|---|---|---|---|---|
| SRBR-040-BLK | 6.4 to 7.4 | 12.7 -13.1 | 11.5 | 1.6 | 11 | Enquire Now |
| SRBR-050-BLK | 6.4 to 7.4 | 12.7 - 13.1 | 11.5 | 2.5 | 11 | Enquire Now |
| SRBR-080-BLK | 7.6 | 12.7 | 11.8 | 2.3 | 11 | Enquire Now |
| SRBR-090-BLK | 7.4 to 8.2 | 15.9 | 14 | 1.6 | 14.8 | Enquire Now |
| SRBR-100-BLK | 7.6 | 15.9 | 14 | 3.2 | 14.8 | Enquire Now |
| SRBR-110-BLK | 8.2 to 9.2 | 15.9 | 14 | 1.6 | 14.8 | Enquire Now |
| SRBR-120-BLK | 8.2 to 9.2 | 15.9 | 14 | 3.2 | 14.8 | Enquire Now |
| SRBR-150-BLK | 9.2 to 11 | 19.9 | 17 | 1.6 | 19 | Enquire Now |
| SRBR-155-BLK | 9.2 to 11 | 19.7 | 17 | 3.2 | 19 | Enquire Now |
| SRBR-175-BLK | 11 to 15 | 15 | 19 | 1.6 | 17.5 | Enquire Now |
| SRBR-180-BLK | 12 to 15.2 | 21.6 | 21.3 | 3.2 | 20.6 | Enquire Now |
| SRBR-205-BLK | 15.2 to 17.5 | 28 - 30.2 | 25.5 | 3.2 | 25.2 | Enquire Now |
