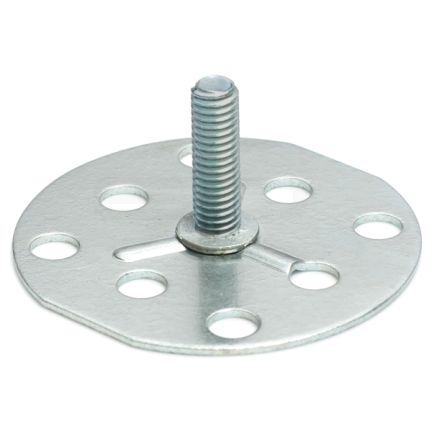

Threaded Stud on 50mm Round Base Plate
Product Description
Bonding fasteners are designed to provide a strong load spreading anchor in GRP, plastics and other composite materials. They can be surface mounted by screws, rivets, nails and adhesive, or they can be bonded into the substrate.
Material
Mild Steel and Stainless Steel.
Plate Size 50mm Dia.
| Product Code | Thread | No. of Packs |
|---|---|---|
| TS-LR-6015 | M6 x 15 | Enquire Now |
| TS-LR-6020 | M6 x 20 | Enquire Now |
| TS-LR-6025 | M6 x 25 | Enquire Now |
| TS-LR-6030 | M6 x 30 | Enquire Now |
| TS-LR-6040 | M6 x 40 | Enquire Now |
| TS-LR-6050 | M6 x 50 | Enquire Now |
| TS-LR-6060 | M6 x 60 | Enquire Now |
| TS-LR-6075 | M6 x 75 | Enquire Now |
| TS-LR-8015 | M8 x 15 | Enquire Now |
| TS-LR-8020 | M8 x 20 | Enquire Now |
| TS-LR-8025 | M8 x 25 | Enquire Now |
| TS-LR-8030 | M8 x 30 | Enquire Now |
| TS-LR-8040 | M8 x 40 | Enquire Now |
| TS-LR-8050 | M8 x 50 | Enquire Now |
| TS-LR-8060 | M8 x 60 | Enquire Now |
| TS-LR-8075 | M8 x 75 | Enquire Now |
| TS-LR-10015 | M10 x 15 | Enquire Now |
| TS-LR-10020 | M10 x 20 | Enquire Now |
| TS-LR-10025 | M10 x 25 | Enquire Now |
| TS-LR-10030 | M10 x 30 | Enquire Now |
| TS-LR-10040 | M10 x 40 | Enquire Now |
| TS-LR-10050 | M10 x 50 | Enquire Now |
| TS-LR-10060 | M10 x 60 | Enquire Now |
| TS-LR-10075 | M10 x 75 | Enquire Now |
