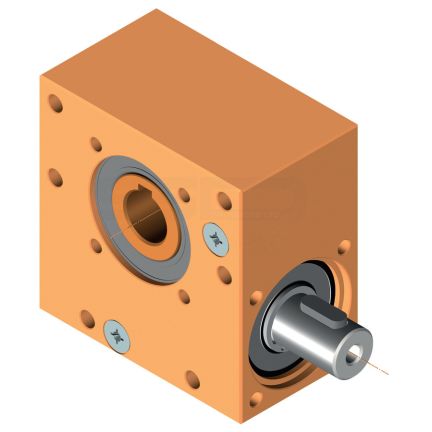

Worm gear 2010
Product Description
Worm gear for universal applications
Centre distance 20 mm
Compact design
Outer dimensions 60x60x35 mm
7 ratios of 13:1 to 65:1
Aluminium housing, anodized
Maintenance-free
Special features
Smallest dimensions for max. torque
Smooth and silent running
Simple screw mounting
Customer specific
Other ratios are available on request.
*maximum radial force at Fa=0
**maximum axial force at Fr=0
| Product Code | Ratio i | Self locking static | Max. drive torque M in Nm | Max. output torque M in Nm | Speed range n in rpm | Radial force* Fr in N | Axial force** Fa in N | Degree of efficiency in % | Weight in g | No. of Packs |
|---|---|---|---|---|---|---|---|---|---|---|
| 2010.00-V01R65 | 65 : 1 | yes | 0.2/0.2/0.2 | 4.5/3.8/3.0 | 100/500/1000 | 500 | 500 | 29 | 432 | Enquire Now |
| 2010.00-V02R40 | 40 : 1 | yes | 0.4/0.3/0.3 | 5.5/4.8/4.0 | 100/500/1000 | 400 | 400 | 39 | 426 | Enquire Now |
| 2010.00-V03R30 | 30 : 1 | yes | 0.6/0.5/0.4 | 8.5/7.0/5.5 | 100/500/1000 | 350 | 350 | 45 | 438 | Enquire Now |
| 2010.00-V04R23 | 23 : 1 | yes | 0.9/0.7/0.5 | 10.0/8.0/6.0 | 100/500/1000 | 250 | 250 | 50 | 428 | Enquire Now |
| 2010.00-V05R18 | 18 : 1 | yes | 1.1/0.9/0.7 | 11.0/9.0/7.0 | 100/500/1000 | 250 | 250 | 55 | 426 | Enquire Now |
| 2010.00-V06R15 | 15 : 1 | no | 1.5/1.3/1.0 | 12.0/10.0/8.0 | 100/500/1000 | 250 | 250 | 52 | 425 | Enquire Now |
| 2010.00-V07R13 | 13 : 1 | no | 2.1/1.8/1.5 | 15.0/13.0/11.0 | 100/500/1000 | 200 | 200 | 56 | 422 | Enquire Now |
