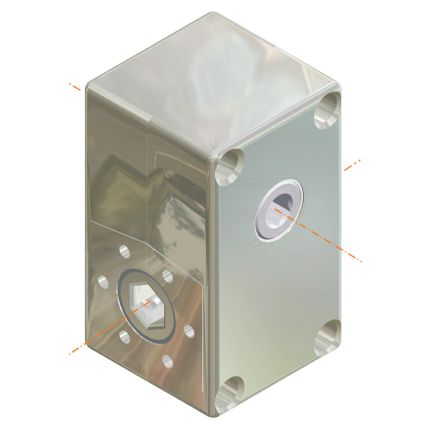

Worm gear 4731 / 4733 / 4734 / 4735 / 4737 / 4739 / 4742
Product Description
Compact worm gear.
Special features
Ratio 1:1, 2:1, 3.25:1, 4.33:1, 5:1, 7:1, 8.5:1, 17:1, 20:1, 30:1
Housing made of die-cast zinc
Gear with synthetic friction bearing
Customer specific
Input and output can be modified to customer requirements.
| Product Code | Ratio | Max. output torque | Self-locking | No. of Packs |
|---|---|---|---|---|
| 4731.00-XXXX | 1:1 | 2 Nm | no | Enquire Now |
| 4743.00-XXXX | 2:1 | 3 Nm | no | Enquire Now |
| 4733.00-XXXX | 3.25:1 | 4 Nm | yes | Enquire Now |
| 4734.00-XXXX | 4.33:1 | 5 Nm | yes | Enquire Now |
| 4735.00-XXXX | 5:1 | 5 Nm | yes | Enquire Now |
| 4737.00-XXXX | 7:1 | 7 Nm | yes | Enquire Now |
| 4739.00-XXXX | 8.5:1 | 9 Nm | yes | Enquire Now |
| 4744.00-XXXX | 17:1 | 12 Nm | yes | Enquire Now |
| 4742.00-XXXX | 20:1 | 15 Nm | yes | Enquire Now |
| 4745.00-XXXX | 30:1 | 17 Nm | yes | Enquire Now |
