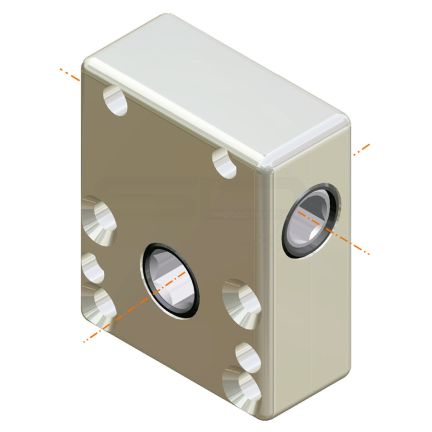

Worm gear 4748 / 4750 / 4751 / 4753 / 4757 / 4758 / 4763 / 4767
Product Description
Compact worm gear. The input is on the small side of the gear. The gears is particularly suitable for manual operation.
Special features
Ratio 1:1, 2:1, 2.8:1, 4.33:1, 10:1, 14:1, 15:1
Gear with synthetic friction bearing
Worm and cog wheel made of case hardened steel
Housing made of die-cast zinc
Special model with bronze bearing
Customer specific
On customer request, the gear is also available left-handed.
| Product Code | Ratio | Input | Output | Max. drive torque | Max. output torque | Self-locking | No. of Packs |
|---|---|---|---|---|---|---|---|
| 4748.00-00 | 4.33:1 | hex 6 mm | hex 6 mm | 3 Nm | 2 Nm | yes | Enquire Now |
| 4750.00-00 | 10:1 | hex 6 mm | hex 6 mm | 3 Nm | 4 Nm | yes | Enquire Now |
| 4751.00-00 | 1:1 | hex 6 mm | hex 6 mm | 4 Nm | 2 Nm | no | Enquire Now |
| 4753.00-00 | 2.8:1 | hex 6 mm | hex 6 mm | 3 Nm | 2.5 Nm | no | Enquire Now |
| 4757.00-00 | 14:1 | hex 6 mm | hex 6 mm | 2.5 Nm | 5 Nm | yes | Enquire Now |
| 4758.00-00 | 15:1 | hex 6 mm | hex 6 mm | 1 Nm | 4 Nm | yes | Enquire Now |
| 4763.00-00 | 23:1 | hex 6 mm | hex 6 mm | 1 Nm | 3 Nm | yes | Enquire Now |
| 4767.00-00 | 2:1 | hex 6 mm | hex 6 mm | 3 Nm | 2 Nm | no | Enquire Now |
