WSMT Wave Springs – Imperial

Product Description

Multi Turn, Inch

Used for low force applications with large deflections: more turns equals less force. Utilises nearly half the space as helical compression springs while producing the same force.

Material codes: ST = Carbon Steel. SQ = 17-7 PH/C Stainless Steel. Special alloys available upon request.

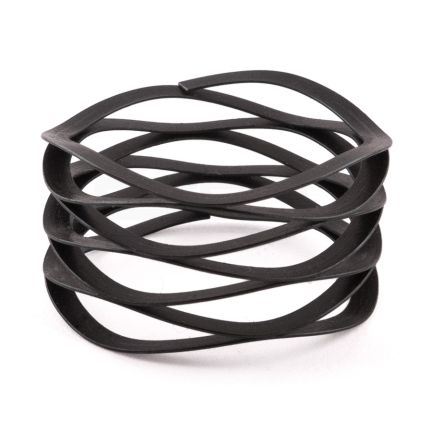

main product photo
Product Code Housing Dia. (Dh DEC) Housing Dia. (Dh FRAC) Housing Dia. (Dh mm) Shaft Dia. Clearance (Ds) Load (lb) Work Height (WH) Free Height Ref. (FH) Number of Waves Number of Turns Thickness T Section S Spring Rate Ref. Lbs./in. No. of Packs
WSMT-L-I-37 A 0.375 3/8 9.5 0.25 4 0.062 0.15 2.5 3 0.008 0.032 45 Enquire Now
WSMT-L-I-37 B 0.375 3/8 9.5 0.25 4 0.098 0.2 2.5 4 0.008 0.032 39 Enquire Now
WSMT-L-I-37 C 0.375 3/8 9.5 0.25 4 0.108 0.25 2.5 5 0.008 0.032 28 Enquire Now
WSMT-L-I-37 D 0.375 3/8 9.5 0.25 4 0.135 0.3 2.5 6 0.008 0.032 24 Enquire Now
WSMT-L-I-37 E 0.375 3/8 9.5 0.25 4 0.15 0.35 2.5 7 0.008 0.032 20 Enquire Now
WSMT-L-I-37 F 0.375 3/8 9.5 0.25 4 0.184 0.4 2.5 8 0.008 0.032 19 Enquire Now
WSMT-L-I-37 G 0.375 3/8 9.5 0.25 4 0.195 0.45 2.5 9 0.008 0.032 16 Enquire Now
WSMT-L-I-37 H 0.375 3/8 9.5 0.25 4 0.228 0.5 2.5 10 0.008 0.032 15 Enquire Now
WSMT-L-I-37 I 0.375 3/8 9.5 0.25 4 0.24 0.55 2.5 11 0.008 0.032 13 Enquire Now
WSMT-M-I-37 A 0.375 3/8 9.5 0.25 7 0.081 0.15 2.5 3 0.011 0.032 101 Enquire Now
WSMT-M-I-37 B 0.375 3/8 9.5 0.25 7 0.119 0.2 2.5 4 0.011 0.032 86 Enquire Now
WSMT-M-I-37 C 0.375 3/8 9.5 0.25 7 0.145 0.25 2.5 5 0.011 0.032 67 Enquire Now
WSMT-M-I-37 D 0.375 3/8 9.5 0.25 7 0.18 0.3 2.5 6 0.011 0.032 58 Enquire Now
WSMT-M-I-37 E 0.375 3/8 9.5 0.25 7 0.202 0.35 2.5 7 0.011 0.032 47 Enquire Now
WSMT-M-I-37 F 0.375 3/8 9.5 0.25 7 0.24 0.4 2.5 8 0.011 0.032 44 Enquire Now
WSMT-M-I-37 G 0.375 3/8 9.5 0.25 7 0.262 0.45 2.5 9 0.011 0.032 37 Enquire Now
WSMT-M-I-37 H 0.375 3/8 9.5 0.25 7 0.298 0.5 2.5 10 0.011 0.032 35 Enquire Now
WSMT-M-I-37 I 0.375 3/8 9.5 0.25 7 0.327 0.55 2.5 11 0.011 0.032 31 Enquire Now
WSMT-L-I-43 A 0.437 7/16 11.1 0.281 4 0.063 0.165 2.5 3 0.008 0.04 39 Enquire Now
WSMT-L-I-43 B 0.437 7/16 11.1 0.281 4 0.093 0.22 2.5 4 0.008 0.04 31 Enquire Now
WSMT-L-I-43 C 0.437 7/16 11.1 0.281 4 0.109 0.275 2.5 5 0.008 0.04 24 Enquire Now
WSMT-L-I-43 D 0.437 7/16 11.1 0.281 4 0.143 0.33 2.5 6 0.008 0.04 21 Enquire Now
WSMT-L-I-43 E 0.437 7/16 11.1 0.281 4 0.16 0.385 2.5 7 0.008 0.04 18 Enquire Now
WSMT-L-I-43 F 0.437 7/16 11.1 0.281 4 0.195 0.44 2.5 8 0.008 0.04 16 Enquire Now
WSMT-L-I-43 G 0.437 7/16 11.1 0.281 4 0.21 0.495 2.5 9 0.008 0.04 14 Enquire Now
WSMT-L-I-43 H 0.437 7/16 11.1 0.281 4 0.24 0.55 2.5 10 0.008 0.04 13 Enquire Now
WSMT-L-I-43 I 0.437 7/16 11.1 0.281 4 0.26 0.605 2.5 11 0.008 0.04 12 Enquire Now
WSMT-M-I-43 A 0.437 7/16 11.1 0.281 8 0.082 0.165 2.5 3 0.011 0.046 96 Enquire Now
WSMT-M-I-43 B 0.437 7/16 11.1 0.281 8 0.115 0.22 2.5 4 0.011 0.046 76 Enquire Now
WSMT-M-I-43 C 0.437 7/16 11.1 0.281 8 0.142 0.275 2.5 5 0.011 0.046 60 Enquire Now
WSMT-M-I-43 D 0.437 7/16 11.1 0.281 8 0.179 0.33 2.5 6 0.011 0.046 53 Enquire Now
WSMT-M-I-43 E 0.437 7/16 11.1 0.281 8 0.198 0.385 2.5 7 0.011 0.046 43 Enquire Now
WSMT-M-I-43 F 0.437 7/16 11.1 0.281 8 0.231 0.44 2.5 8 0.011 0.046 38 Enquire Now
WSMT-M-I-43 G 0.437 7/16 11.1 0.281 8 0.255 0.495 2.5 9 0.011 0.046 33 Enquire Now
WSMT-M-I-43 H 0.437 7/16 11.1 0.281 8 0.29 0.55 2.5 10 0.011 0.046 31 Enquire Now
WSMT-M-I-43 I 0.437 7/16 11.1 0.281 8 0.319 0.605 2.5 11 0.011 0.046 28 Enquire Now
WSMT-L-I-50 A 0.5 1/2 12.7 0.312 5 0.062 0.18 2.5 3 0.008 0.056 42 Enquire Now
WSMT-L-I-50 B 0.5 1/2 12.7 0.312 5 0.09 0.24 2.5 4 0.008 0.056 33 Enquire Now
WSMT-L-I-50 C 0.5 1/2 12.7 0.312 5 0.107 0.3 2.5 5 0.008 0.056 26 Enquire Now
WSMT-L-I-50 D 0.5 1/2 12.7 0.312 5 0.136 0.36 2.5 6 0.008 0.056 22 Enquire Now
WSMT-L-I-50 E 0.5 1/2 12.7 0.312 5 0.15 0.42 2.5 7 0.008 0.056 19 Enquire Now
WSMT-L-I-50 F 0.5 1/2 12.7 0.312 5 0.18 0.48 2.5 8 0.008 0.056 17 Enquire Now
WSMT-L-I-50 G 0.5 1/2 12.7 0.312 5 0.195 0.54 2.5 9 0.008 0.056 14 Enquire Now
WSMT-L-I-50 H 0.5 1/2 12.7 0.312 5 0.22 0.6 2.5 10 0.008 0.056 13 Enquire Now
WSMT-L-I-50 I 0.5 1/2 12.7 0.312 5 0.24 0.66 2.5 11 0.008 0.056 12 Enquire Now
WSMT-M-I-50 A 0.5 1/2 12.7 0.312 10 0.065 0.18 2.5 3 0.01 0.058 87 Enquire Now
WSMT-M-I-50 B 0.5 1/2 12.7 0.312 10 0.092 0.24 2.5 4 0.01 0.058 68 Enquire Now
WSMT-M-I-50 C 0.5 1/2 12.7 0.312 10 0.114 0.3 2.5 5 0.01 0.058 54 Enquire Now
WSMT-M-I-50 D 0.5 1/2 12.7 0.312 10 0.147 0.36 2.5 6 0.01 0.058 47 Enquire Now
WSMT-M-I-50 E 0.5 1/2 12.7 0.312 10 0.162 0.42 2.5 7 0.01 0.058 39 Enquire Now
WSMT-M-I-50 F 0.5 1/2 12.7 0.312 10 0.196 0.48 2.5 8 0.01 0.058 35 Enquire Now
WSMT-M-I-50 G 0.5 1/2 12.7 0.312 10 0.207 0.54 2.5 9 0.01 0.058 30 Enquire Now
WSMT-M-I-50 H 0.5 1/2 12.7 0.312 10 0.246 0.6 2.5 10 0.01 0.058 28 Enquire Now
WSMT-M-I-50 I 0.5 1/2 12.7 0.312 10 0.264 0.66 2.5 11 0.01 0.058 25 Enquire Now
WSMT-L-I-56 A 0.562 9/16 14.3 0.375 5 0.08 0.195 2.5 3 0.009 0.058 43 Enquire Now
WSMT-L-I-56 B 0.562 9/16 14.3 0.375 5 0.125 0.26 2.5 4 0.009 0.058 37 Enquire Now
WSMT-L-I-56 C 0.562 9/16 14.3 0.375 5 0.135 0.325 2.5 5 0.009 0.058 26 Enquire Now
WSMT-L-I-56 D 0.562 9/16 14.3 0.375 5 0.18 0.39 2.5 6 0.009 0.058 24 Enquire Now
WSMT-L-I-56 E 0.562 9/16 14.3 0.375 5 0.19 0.455 2.5 7 0.009 0.058 19 Enquire Now
WSMT-L-I-56 F 0.562 9/16 14.3 0.375 5 0.23 0.52 2.5 8 0.009 0.058 17 Enquire Now
WSMT-L-I-56 G 0.562 9/16 14.3 0.375 5 0.26 0.585 2.5 9 0.009 0.058 15 Enquire Now
WSMT-L-I-56 H 0.562 9/16 14.3 0.375 5 0.285 0.65 2.5 10 0.009 0.058 14 Enquire Now
WSMT-L-I-56 I 0.562 9/16 14.3 0.375 5 0.315 0.715 2.5 11 0.009 0.058 13 Enquire Now
WSMT-M-I-56 A 0.562 9/16 14.3 0.375 11 0.086 0.195 2.5 3 0.012 0.06 101 Enquire Now
WSMT-M-I-56 B 0.562 9/16 14.3 0.375 11 0.123 0.26 2.5 4 0.012 0.06 80 Enquire Now
WSMT-M-I-56 C 0.562 9/16 14.3 0.375 11 0.145 0.325 2.5 5 0.012 0.06 61 Enquire Now
WSMT-M-I-56 D 0.562 9/16 14.3 0.375 11 0.187 0.39 2.5 6 0.012 0.06 54 Enquire Now
WSMT-M-I-56 E 0.562 9/16 14.3 0.375 11 0.209 0.455 2.5 7 0.012 0.06 45 Enquire Now
WSMT-M-I-56 F 0.562 9/16 14.3 0.375 11 0.253 0.52 2.5 8 0.012 0.06 41 Enquire Now
WSMT-M-I-56 G 0.562 9/16 14.3 0.375 11 0.273 0.585 2.5 9 0.012 0.06 35 Enquire Now
WSMT-M-I-56 H 0.562 9/16 14.3 0.375 11 0.318 0.65 2.5 10 0.012 0.06 33 Enquire Now
WSMT-M-I-56 I 0.562 9/16 14.3 0.375 11 0.343 0.715 2.5 11 0.012 0.06 30 Enquire Now
WSMT-L-I-62 A 0.625 5/8 15.9 0.45 6 0.055 0.18 2.5 3 0.01 0.058 48 Enquire Now
WSMT-L-I-62 B 0.625 5/8 15.9 0.45 6 0.068 0.24 2.5 4 0.01 0.058 35 Enquire Now
WSMT-L-I-62 C 0.625 5/8 15.9 0.45 6 0.085 0.3 2.5 5 0.01 0.058 28 Enquire Now
WSMT-L-I-62 D 0.625 5/8 15.9 0.45 6 0.106 0.36 2.5 6 0.01 0.058 24 Enquire Now
WSMT-L-I-62 E 0.625 5/8 15.9 0.45 6 0.128 0.42 2.5 7 0.01 0.058 21 Enquire Now
WSMT-L-I-62 F 0.625 5/8 15.9 0.45 6 0.165 0.54 2.5 9 0.01 0.058 16 Enquire Now
WSMT-L-I-62 G 0.625 5/8 15.9 0.45 6 0.202 0.66 2.5 11 0.01 0.058 13 Enquire Now
WSMT-L-I-62 H 0.625 5/8 15.9 0.45 6 0.238 0.78 2.5 13 0.01 0.058 11 Enquire Now
WSMT-M-I-62 A 0.625 5/8 15.9 0.45 12 0.104 0.18 3.5 3 0.01 0.058 158 Enquire Now
WSMT-M-I-62 B 0.625 5/8 15.9 0.45 12 0.13 0.24 3.5 4 0.01 0.058 109 Enquire Now
WSMT-M-I-62 C 0.625 5/8 15.9 0.45 12 0.175 0.3 3.5 5 0.01 0.058 96 Enquire Now
WSMT-M-I-62 D 0.625 5/8 15.9 0.45 12 0.206 0.36 3.5 6 0.01 0.058 78 Enquire Now
WSMT-M-I-62 E 0.625 5/8 15.9 0.45 12 0.246 0.42 3.5 7 0.01 0.058 69 Enquire Now
WSMT-M-I-62 F 0.625 5/8 15.9 0.45 12 0.317 0.54 3.5 9 0.01 0.058 54 Enquire Now
WSMT-M-I-62 G 0.625 5/8 15.9 0.45 12 0.386 0.66 3.5 11 0.01 0.058 44 Enquire Now
WSMT-M-I-62 H 0.625 5/8 15.9 0.45 12 0.454 0.78 3.5 13 0.01 0.058 37 Enquire Now
WSMT-L-I-75 A 0.75 3/4 19 0.55 7 0.142 0.25 3.5 3 0.008 0.071 65 Enquire Now
WSMT-L-I-75 B 0.75 3/4 19 0.55 7 0.187 0.333 3.5 4 0.008 0.071 48 Enquire Now
WSMT-L-I-75 C 0.75 3/4 19 0.55 7 0.246 0.417 3.5 5 0.008 0.071 41 Enquire Now
WSMT-L-I-75 D 0.75 3/4 19 0.55 7 0.285 0.5 3.5 6 0.008 0.071 33 Enquire Now
WSMT-L-I-75 E 0.75 3/4 19 0.55 7 0.348 0.583 3.5 7 0.008 0.071 30 Enquire Now
WSMT-L-I-75 F 0.75 3/4 19 0.55 7 0.446 0.75 3.5 9 0.008 0.071 23 Enquire Now
WSMT-L-I-75 G 0.75 3/4 19 0.55 7 0.58 1 3.5 12 0.008 0.071 17 Enquire Now
WSMT-M-I-75 A 0.75 3/4 19 0.55 13 0.159 0.25 3.5 3 0.01 0.078 143 Enquire Now
WSMT-M-I-75 B 0.75 3/4 19 0.55 13 0.203 0.333 3.5 4 0.01 0.078 100 Enquire Now
WSMT-M-I-75 C 0.75 3/4 19 0.55 13 0.27 0.417 3.5 5 0.01 0.078 88 Enquire Now
WSMT-M-I-75 D 0.75 3/4 19 0.55 13 0.314 0.5 3.5 6 0.01 0.078 70 Enquire Now
WSMT-M-I-75 E 0.75 3/4 19 0.55 13 0.381 0.583 3.5 7 0.01 0.078 64 Enquire Now
WSMT-M-I-75 F 0.75 3/4 19 0.55 13 0.489 0.75 3.5 9 0.01 0.078 50 Enquire Now
WSMT-M-I-75 G 0.75 3/4 19 0.55 13 0.649 1 3.5 12 0.01 0.078 37 Enquire Now
WSMT-H-I-75 A 0.75 3/4 19 0.55 22 0.169 0.25 3.5 3 0.013 0.079 272 Enquire Now
WSMT-H-I-75 B 0.75 3/4 19 0.55 22 0.215 0.333 3.5 4 0.013 0.079 186 Enquire Now
WSMT-H-I-75 C 0.75 3/4 19 0.55 22 0.291 0.417 3.5 5 0.013 0.079 175 Enquire Now
WSMT-H-I-75 D 0.75 3/4 19 0.55 22 0.335 0.5 3.5 6 0.013 0.079 133 Enquire Now
WSMT-H-I-75 E 0.75 3/4 19 0.55 22 0.405 0.583 3.5 7 0.013 0.079 124 Enquire Now
WSMT-H-I-75 F 0.75 3/4 19 0.55 22 0.526 0.75 3.5 9 0.013 0.079 98 Enquire Now
WSMT-H-I-75 G 0.75 4/3 19 0.55 22 0.699 1 3.5 12 0.013 0.079 73 Enquire Now
WSMT-L-I-87 A 0.875 7/8 22.2 0.6 12 0.117 0.25 3.5 3 0.01 0.086 90 Enquire Now
WSMT-L-I-87 B 0.875 7/8 22.2 0.6 12 0.158 0.333 3.5 4 0.01 0.086 69 Enquire Now
WSMT-L-I-87 C 0.875 7/8 22.2 0.6 12 0.207 0.417 3.5 5 0.01 0.086 57 Enquire Now
WSMT-L-I-87 D 0.875 7/8 22.2 0.6 12 0.242 0.5 3.5 6 0.01 0.086 47 Enquire Now
WSMT-L-I-87 E 0.875 7/8 22.2 0.6 12 0.287 0.583 3.5 7 0.01 0.086 41 Enquire Now
WSMT-L-I-87 F 0.875 7/8 22.2 0.6 12 0.378 0.75 3.5 9 0.01 0.086 32 Enquire Now
WSMT-L-I-87 G 0.875 7/8 22.2 0.6 12 0.498 1 3.5 12 0.01 0.086 24 Enquire Now
WSMT-M-I-87 A 0.875 7/8 22.2 0.6 18 0.124 0.25 3.5 3 0.012 0.094 148 Enquire Now
WSMT-M-I-87 B 0.875 7/8 22.2 0.6 18 0.164 0.333 3.5 4 0.012 0.094 108 Enquire Now
WSMT-M-I-87 C 0.875 7/8 22.2 0.6 18 0.214 0.417 3.5 5 0.012 0.094 89 Enquire Now
WSMT-M-I-87 D 0.875 7/8 22.2 0.6 18 0.252 0.5 3.5 6 0.012 0.094 76 Enquire Now
WSMT-M-I-87 E 0.875 7/8 22.2 0.6 18 0.296 0.583 3.5 7 0.012 0.094 66 Enquire Now
WSMT-M-I-87 F 0.875 7/8 22.2 0.6 18 0.385 0.75 3.5 9 0.012 0.094 50 Enquire Now
WSMT-M-I-87 G 0.875 7/8 22.2 0.6 18 0.509 1 3.5 12 0.012 0.094 38 Enquire Now
WSMT-H-I-87 A 0.875 7/8 22.2 0.6 25 0.166 0.25 3.5 3 0.015 0.094 298 Enquire Now
WSMT-H-I-87 B 0.875 7/8 22.2 0.6 25 0.214 0.333 3.5 4 0.015 0.094 210 Enquire Now
WSMT-H-I-87 C 0.875 7/8 22.2 0.6 25 0.278 0.417 3.5 5 0.015 0.094 180 Enquire Now
WSMT-H-I-87 D 0.875 7/8 22.2 0.6 25 0.327 0.5 3.5 6 0.015 0.094 145 Enquire Now
WSMT-H-I-87 E 0.875 7/8 22.2 0.6 25 0.395 0.583 3.5 7 0.015 0.094 133 Enquire Now
WSMT-H-I-87 F 0.875 7/8 22.2 0.6 25 0.51 0.75 3.5 9 0.015 0.094 104 Enquire Now
WSMT-H-I-87 G 0.875 7/8 22.2 0.6 25 0.67 1 3.5 12 0.015 0.094 78 Enquire Now
WSMT-L-I-100 A 1 1 25.4 0.73 12 0.084 0.25 3.5 3 0.01 0.086 72 Enquire Now
WSMT-L-I-100 B 1 1 25.4 0.73 12 0.108 0.333 3.5 4 0.01 0.086 53 Enquire Now
WSMT-L-I-100 C 1 1 25.4 0.73 12 0.145 0.417 3.5 5 0.01 0.086 44 Enquire Now
WSMT-L-I-100 D 1 1 25.4 0.73 12 0.165 0.5 3.5 6 0.01 0.086 36 Enquire Now
WSMT-L-I-100 E 1 1 25.4 0.73 12 0.201 0.583 3.5 7 0.01 0.086 31 Enquire Now
WSMT-L-I-100 F 1 1 25.4 0.73 12 0.258 0.75 3.5 9 0.01 0.086 24 Enquire Now
WSMT-L-I-100 G 1 1 25.4 0.73 12 0.342 1 3.5 12 0.01 0.086 18 Enquire Now
WSMT-L-I-100 H 1 1 25.4 0.73 12 0.445 1.25 3.5 15 0.01 0.086 15 Enquire Now
WSMT-L-I-100 I 1 1 25.4 0.73 12 0.519 1.5 3.5 18 0.01 0.086 12 Enquire Now
WSMT-L-I-100 J 1 1 25.4 0.73 12 0.633 1.75 3.5 21 0.01 0.086 11 Enquire Now
WSMT-L-I-100 K 1 1 25.4 0.73 12 0.71 2 3.5 24 0.01 0.086 9 Enquire Now
WSMT-M-I-100 A 1 1 25.4 0.73 18 0.087 0.25 3.5 3 0.012 0.094 110 Enquire Now
WSMT-M-I-100 B 1 1 25.4 0.73 18 0.113 0.333 3.5 4 0.012 0.094 82 Enquire Now
WSMT-M-I-100 C 1 1 25.4 0.73 18 0.148 0.417 3.5 5 0.012 0.094 67 Enquire Now
WSMT-M-I-100 D 1 1 25.4 0.73 18 0.175 0.5 3.5 6 0.012 0.094 55 Enquire Now
WSMT-M-I-100 E 1 1 25.4 0.73 18 0.212 0.583 3.5 7 0.012 0.094 49 Enquire Now
WSMT-M-I-100 F 1 1 25.4 0.73 18 0.276 0.75 3.5 9 0.012 0.094 38 Enquire Now
WSMT-M-I-100 G 1 1 25.4 0.73 18 0.36 1 3.5 12 0.012 0.094 28 Enquire Now
WSMT-M-I-100 H 1 1 25.4 0.73 18 0.452 1.25 3.5 15 0.012 0.094 23 Enquire Now
WSMT-M-I-100 I 1 1 25.4 0.73 18 0.549 1.5 3.5 18 0.012 0.094 19 Enquire Now
WSMT-M-I-100 J 1 1 25.4 0.73 18 0.65 1.75 3.5 21 0.012 0.094 16 Enquire Now
WSMT-M-I-100 K 1 1 25.4 0.73 18 0.72 2 3.5 24 0.012 0.094 14 Enquire Now
WSMT-H-I-100 A 1 1 25.4 0.73 25 0.131 0.25 3.5 3 0.015 0.094 210 Enquire Now
WSMT-H-I-100 B 1 1 25.4 0.73 25 0.174 0.333 3.5 4 0.015 0.094 157 Enquire Now
WSMT-H-I-100 C 1 1 25.4 0.73 25 0.227 0.417 3.5 5 0.015 0.094 132 Enquire Now
WSMT-H-I-100 D 1 1 25.4 0.73 25 0.266 0.5 3.5 6 0.015 0.094 107 Enquire Now
WSMT-H-I-100 E 1 1 25.4 0.73 25 0.319 0.583 3.5 7 0.015 0.094 95 Enquire Now
WSMT-H-I-100 F 1 1 25.4 0.73 25 0.406 0.75 3.5 9 0.015 0.094 73 Enquire Now
WSMT-H-I-100 G 1 1 25.4 0.73 25 0.541 1 3.5 12 0.015 0.094 54 Enquire Now
WSMT-H-I-100 H 1 1 25.4 0.73 25 0.688 1.25 3.5 15 0.015 0.094 45 Enquire Now
WSMT-H-I-100 I 1 1 25.4 0.73 25 0.813 1.5 3.5 18 0.015 0.094 36 Enquire Now
WSMT-H-I-100 J 1 1 25.4 0.73 25 0.957 1.75 3.5 21 0.015 0.094 32 Enquire Now
WSMT-H-I-100 K 1 1 25.4 0.73 25 1.083 2 3.5 24 0.015 0.094 27 Enquire Now
WSMT-L-I-112 A 1.125 1-1/8 28.6 0.85 12 0.146 0.3 3.5 3 0.012 0.094 78 Enquire Now
WSMT-L-I-112 B 1.125 1-1/8 28.6 0.85 12 0.186 0.4 3.5 4 0.012 0.094 56 Enquire Now
WSMT-L-I-112 C 1.125 1-1/8 28.6 0.85 12 0.25 0.5 3.5 5 0.012 0.094 48 Enquire Now
WSMT-L-I-112 D 1.125 1-1/8 28.6 0.85 12 0.295 0.6 3.5 6 0.012 0.094 39 Enquire Now
WSMT-L-I-112 E 1.125 1-1/8 28.6 0.85 12 0.344 0.7 3.5 7 0.012 0.094 34 Enquire Now
WSMT-L-I-112 F 1.125 1-1/8 28.6 0.85 12 0.392 0.8 3.5 8 0.012 0.094 29 Enquire Now
WSMT-L-I-112 G 1.125 1-1/8 28.6 0.85 12 0.488 1 3.5 10 0.012 0.094 23 Enquire Now
WSMT-L-I-112 H 1.125 1-1/8 28.6 0.85 12 0.659 1.3 3.5 13 0.012 0.094 19 Enquire Now
WSMT-L-I-112 I 1.125 1-1/8 28.6 0.85 12 0.807 1.6 3.5 16 0.012 0.094 15 Enquire Now
WSMT-L-I-112 J 1.125 1-1/8 28.6 0.85 12 1.017 2 3.5 20 0.012 0.094 12 Enquire Now
WSMT-M-I-112 A 1.125 1-1/8 28.6 0.85 20 0.16 0.3 3.5 3 0.015 0.094 143 Enquire Now
WSMT-M-I-112 B 1.125 1-1/8 28.6 0.85 20 0.202 0.4 3.5 4 0.015 0.094 101 Enquire Now
WSMT-M-I-112 C 1.125 1-1/8 28.6 0.85 20 0.27 0.5 3.5 5 0.015 0.094 87 Enquire Now
WSMT-M-I-112 D 1.125 1-1/8 28.6 0.85 20 0.318 0.6 3.5 6 0.015 0.094 71 Enquire Now
WSMT-M-I-112 E 1.125 1-1/8 28.6 0.85 20 0.381 0.7 3.5 7 0.015 0.094 63 Enquire Now
WSMT-M-I-112 F 1.125 1-1/8 28.6 0.85 20 0.427 0.8 3.5 8 0.015 0.094 54 Enquire Now
WSMT-M-I-112 G 1.125 1-1/8 28.6 0.85 20 0.536 1 3.5 10 0.015 0.094 43 Enquire Now
WSMT-M-I-112 H 1.125 1-1/8 28.6 0.85 20 0.708 1.3 3.5 13 0.015 0.094 34 Enquire Now
WSMT-M-I-112 I 1.125 1-1/8 28.6 0.85 20 0.861 1.6 3.5 16 0.015 0.094 27 Enquire Now
WSMT-M-I-112 J 1.125 1-1/8 28.6 0.85 20 1.088 2 3.5 20 0.015 0.094 22 Enquire Now
WSMT-H-I-112 A 1.125 1-1/8 28.6 0.85 30 0.178 0.3 3.5 3 0.018 0.094 246 Enquire Now
WSMT-H-I-112 B 1.125 1-1/8 28.6 0.85 30 0.229 0.4 3.5 4 0.018 0.094 175 Enquire Now
WSMT-H-I-112 C 1.125 1-1/8 28.6 0.85 30 0.303 0.5 3.5 5 0.018 0.094 152 Enquire Now
WSMT-H-I-112 D 1.125 1-1/8 28.6 0.85 30 0.35 0.6 3.5 6 0.018 0.094 120 Enquire Now
WSMT-H-I-112 E 1.125 1-1/8 28.6 0.85 30 0.421 0.7 3.5 7 0.018 0.094 108 Enquire Now
WSMT-H-I-112 F 1.125 1-1/8 28.6 0.85 30 0.47 0.8 3.5 8 0.018 0.094 91 Enquire Now
WSMT-H-I-112 G 1.125 1-1/8 28.6 0.85 30 0.593 1 3.5 10 0.018 0.094 74 Enquire Now
WSMT-H-I-112 H 1.125 1-1/8 28.6 0.85 30 0.787 1.3 3.5 13 0.018 0.094 58 Enquire Now
WSMT-H-I-112 I 1.125 1-1/8 28.6 0.85 30 0.956 1.6 3.5 16 0.018 0.094 47 Enquire Now
WSMT-H-I-112 J 1.125 1-1/8 28.6 0.85 30 1.202 2 3.5 20 0.018 0.094 38 Enquire Now
WSMT-L-I-125 A 1.25 1-1/4 31.7 1 12 0.084 0.3 3.5 3 0.012 0.094 56 Enquire Now
WSMT-L-I-125 B 1.25 1-1/4 31.7 1 12 0.113 0.4 3.5 4 0.012 0.094 42 Enquire Now
WSMT-L-I-125 C 1.25 1-1/4 31.7 1 12 0.149 0.5 3.5 5 0.012 0.094 34 Enquire Now
WSMT-L-I-125 D 1.25 1-1/4 31.7 1 12 0.172 0.6 3.5 6 0.012 0.094 28 Enquire Now
WSMT-L-I-125 E 1.25 1-1/4 31.7 1 12 0.207 0.7 3.5 7 0.012 0.094 24 Enquire Now
WSMT-L-I-125 F 1.25 1-1/4 31.7 1 12 0.227 0.8 3.5 8 0.012 0.094 21 Enquire Now
WSMT-L-I-125 G 1.25 1-1/4 31.7 1 12 0.301 1 3.5 10 0.012 0.094 17 Enquire Now
WSMT-L-I-125 H 1.25 1-1/4 31.7 1 12 0.395 1.3 3.5 13 0.012 0.094 13 Enquire Now
WSMT-L-I-125 I 1.25 1-1/4 31.7 1 12 0.467 1.6 3.5 16 0.012 0.094 11 Enquire Now
WSMT-L-I-125 J 1.25 1-1/4 31.7 1 12 0.591 2 3.5 20 0.012 0.094 9 Enquire Now
WSMT-M-I-125 A 1.25 1-1/4 31.7 1 20 0.124 0.3 3.5 3 0.015 0.094 114 Enquire Now
WSMT-M-I-125 B 1.25 1-1/4 31.7 1 20 0.165 0.4 3.5 4 0.015 0.094 85 Enquire Now
WSMT-M-I-125 C 1.25 1-1/4 31.7 1 20 0.215 0.5 3.5 5 0.015 0.094 70 Enquire Now
WSMT-M-I-125 D 1.25 1-1/4 31.7 1 20 0.253 0.6 3.5 6 0.015 0.094 58 Enquire Now
WSMT-M-I-125 E 1.25 1-1/4 31.7 1 20 0.303 0.7 3.5 7 0.015 0.094 50 Enquire Now
WSMT-M-I-125 F 1.25 1-1/4 31.7 1 20 0.341 0.8 3.5 8 0.015 0.094 44 Enquire Now
WSMT-M-I-125 G 1.25 1-1/4 31.7 1 20 0.427 1 3.5 10 0.015 0.094 35 Enquire Now
WSMT-M-I-125 H 1.25 1-1/4 31.7 1 20 0.577 1.3 3.5 13 0.015 0.094 28 Enquire Now
WSMT-M-I-125 I 1.25 1-1/4 31.7 1 20 0.692 1.6 3.5 16 0.015 0.094 22 Enquire Now
WSMT-M-I-125 J 1.25 1-1/4 31.7 1 20 0.866 2 3.5 20 0.015 0.094 18 Enquire Now
WSMT-H-I-125 A 1.25 1-1/4 31.7 1 30 0.158 0.3 3.5 3 0.019 0.094 210 Enquire Now
WSMT-H-I-125 B 1.25 1-1/4 31.7 1 30 0.21 0.4 3.5 4 0.019 0.094 158 Enquire Now
WSMT-H-I-125 C 1.25 1-1/4 31.7 1 30 0.272 0.5 3.5 5 0.019 0.094 132 Enquire Now
WSMT-H-I-125 D 1.25 1-1/4 31.7 1 30 0.32 0.6 3.5 6 0.019 0.094 107 Enquire Now
WSMT-H-I-125 E 1.25 1-1/4 31.7 1 30 0.384 0.7 3.5 7 0.019 0.094 95 Enquire Now
WSMT-H-I-125 F 1.25 1-1/4 31.7 1 30 0.433 0.8 3.5 8 0.019 0.094 82 Enquire Now
WSMT-H-I-125 G 1.25 1-1/4 31.7 1 30 0.538 1 3.5 10 0.019 0.094 65 Enquire Now
WSMT-H-I-125 H 1.25 1-1/4 31.7 1 30 0.717 1.3 3.5 13 0.019 0.094 51 Enquire Now
WSMT-H-I-125 I 1.25 1-1/4 31.7 1 30 0.878 1.6 3.5 16 0.019 0.094 42 Enquire Now
WSMT-H-I-125 J 1.25 1-1/4 31.7 1 30 1.103 2 3.5 20 0.019 0.094 33 Enquire Now
WSMT-L-I-137 A 1.375 1-3/8 34.9 1.03 15 0.075 0.3 3.5 3 0.012 0.122 67 Enquire Now
WSMT-L-I-137 B 1.375 1-3/8 34.9 1.03 15 0.099 0.4 3.5 4 0.012 0.122 50 Enquire Now
WSMT-L-I-137 C 1.375 1-3/8 34.9 1.03 15 0.129 0.5 3.5 5 0.012 0.122 40 Enquire Now
WSMT-L-I-137 D 1.375 1-3/8 34.9 1.03 15 0.155 0.6 3.5 6 0.012 0.122 34 Enquire Now
WSMT-L-I-137 E 1.375 1-3/8 34.9 1.03 15 0.179 0.7 3.5 7 0.012 0.122 29 Enquire Now
WSMT-L-I-137 F 1.375 1-3/8 34.9 1.03 15 0.206 0.8 3.5 8 0.012 0.122 25 Enquire Now
WSMT-L-I-137 G 1.375 1-3/8 34.9 1.03 15 0.256 1 3.5 10 0.012 0.122 20 Enquire Now
WSMT-L-I-137 H 1.375 1-3/8 34.9 1.03 15 0.341 1.3 3.5 13 0.012 0.122 16 Enquire Now
WSMT-L-I-137 I 1.375 1-3/8 34.9 1.03 15 0.424 1.6 3.5 16 0.012 0.122 13 Enquire Now
WSMT-L-I-137 J 1.375 1-3/8 34.9 1.03 15 0.53 2 3.5 20 0.012 0.122 10 Enquire Now
WSMT-M-I-137 A 1.375 1-3/8 34.9 1.03 25 0.142 0.3 3.5 3 0.016 0.133 158 Enquire Now
WSMT-M-I-137 B 1.375 1-3/8 34.9 1.03 25 0.186 0.4 3.5 4 0.016 0.133 117 Enquire Now
WSMT-M-I-137 C 1.375 1-3/8 34.9 1.03 25 0.24 0.5 3.5 5 0.016 0.133 96 Enquire Now
WSMT-M-I-137 D 1.375 1-3/8 34.9 1.03 25 0.281 0.6 3.5 6 0.016 0.133 78 Enquire Now
WSMT-M-I-137 E 1.375 1-3/8 34.9 1.03 25 0.34 0.7 3.5 7 0.016 0.133 69 Enquire Now
WSMT-M-I-137 F 1.375 1-3/8 34.9 1.03 25 0.384 0.8 3.5 8 0.016 0.133 60 Enquire Now
WSMT-M-I-137 G 1.375 1-3/8 34.9 1.03 25 0.486 1 3.5 10 0.016 0.133 49 Enquire Now
WSMT-M-I-137 H 1.375 1-3/8 34.9 1.03 25 0.632 1.3 3.5 13 0.016 0.133 37 Enquire Now
WSMT-M-I-137 I 1.375 1-3/8 34.9 1.03 25 0.788 1.6 3.5 16 0.016 0.133 31 Enquire Now
WSMT-M-I-137 J 1.375 1-3/8 34.9 1.03 25 0.982 2 3.5 20 0.016 0.133 25 Enquire Now
WSMT-H-I-137 A 1.375 1-3/8 34.9 1.03 35 0.149 0.3 3.5 3 0.018 0.133 232 Enquire Now
WSMT-H-I-137 B 1.375 1-3/8 34.9 1.03 35 0.189 0.4 3.5 4 0.018 0.133 166 Enquire Now
WSMT-H-I-137 C 1.375 1-3/8 34.9 1.03 35 0.247 0.5 3.5 5 0.018 0.133 138 Enquire Now
WSMT-H-I-137 D 1.375 1-3/8 34.9 1.03 35 0.287 0.6 3.5 6 0.018 0.133 112 Enquire Now
WSMT-H-I-137 E 1.375 1-3/8 34.9 1.03 35 0.343 0.7 3.5 7 0.018 0.133 98 Enquire Now
WSMT-H-I-137 F 1.375 1-3/8 34.9 1.03 35 0.39 0.8 3.5 8 0.018 0.133 85 Enquire Now
WSMT-H-I-137 G 1.375 1-3/8 34.9 1.03 35 0.49 1 3.5 10 0.018 0.133 69 Enquire Now
WSMT-H-I-137 H 1.375 1-3/8 34.9 1.03 35 0.646 1.3 3.5 13 0.018 0.133 54 Enquire Now
WSMT-H-I-137 I 1.375 1-3/8 34.9 1.03 35 0.793 1.6 3.5 16 0.018 0.133 43 Enquire Now
WSMT-H-I-137 J 1.375 1-3/8 34.9 1.03 35 1 2 3.5 20 0.018 0.133 35 Enquire Now
WSMT-L-I-150 A 1.5 1-1/2 38.1 1.14 20 0.129 0.3 3.5 3 0.016 0.133 117 Enquire Now
WSMT-L-I-150 B 1.5 1-1/2 38.1 1.14 20 0.164 0.4 3.5 4 0.016 0.133 85 Enquire Now
WSMT-L-I-150 C 1.5 1-1/2 38.1 1.14 20 0.213 0.5 3.5 5 0.016 0.133 70 Enquire Now
WSMT-L-I-150 D 1.5 1-1/2 38.1 1.14 20 0.247 0.6 3.5 6 0.016 0.133 57 Enquire Now
WSMT-L-I-150 E 1.5 1-1/2 38.1 1.14 20 0.301 0.7 3.5 7 0.016 0.133 50 Enquire Now
WSMT-L-I-150 F 1.5 1-1/2 38.1 1.14 20 0.337 0.8 3.5 8 0.016 0.133 43 Enquire Now
WSMT-L-I-150 G 1.5 1-1/2 38.1 1.14 20 0.43 1 3.5 10 0.016 0.133 35 Enquire Now
WSMT-L-I-150 H 1.5 1-1/2 38.1 1.14 20 0.565 1.3 3.5 13 0.016 0.133 27 Enquire Now
WSMT-L-I-150 I 1.5 1-1/2 38.1 1.14 20 0.694 1.6 3.5 16 0.016 0.133 22 Enquire Now
WSMT-L-I-150 J 1.5 1-1/2 38.1 1.14 20 0.866 2 3.5 20 0.016 0.133 18 Enquire Now
WSMT-M-I-150 A 1.5 1-1/2 38.1 1.14 35 0.122 0.3 3.5 3 0.018 0.133 197 Enquire Now
WSMT-M-I-150 B 1.5 1-1/2 38.1 1.14 35 0.158 0.4 3.5 4 0.018 0.133 145 Enquire Now
WSMT-M-I-150 C 1.5 1-1/2 38.1 1.14 35 0.206 0.5 3.5 5 0.018 0.133 119 Enquire Now
WSMT-M-I-150 D 1.5 1-1/2 38.1 1.14 35 0.241 0.6 3.5 6 0.018 0.133 97 Enquire Now
WSMT-M-I-150 E 1.5 1-1/2 38.1 1.14 35 0.291 0.7 3.5 7 0.018 0.133 86 Enquire Now
WSMT-M-I-150 F 1.5 1-1/2 38.1 1.14 35 0.324 0.8 3.5 8 0.018 0.133 74 Enquire Now
WSMT-M-I-150 G 1.5 1-1/2 38.1 1.14 35 0.409 1 3.5 10 0.018 0.133 59 Enquire Now
WSMT-M-I-150 H 1.5 1-1/2 38.1 1.14 35 0.54 1.3 3.5 13 0.018 0.133 46 Enquire Now
WSMT-M-I-150 I 1.5 1-1/2 38.1 1.14 35 0.657 1.6 3.5 16 0.018 0.133 37 Enquire Now
WSMT-M-I-150 J 1.5 1-1/2 38.1 1.14 35 0.835 2 3.5 20 0.018 0.133 30 Enquire Now
WSMT-H-I-150 A 1.5 1-1/2 38.1 1.14 60 0.166 0.3 4.5 3 0.018 0.133 448 Enquire Now
WSMT-H-I-150 B 1.5 1-1/2 38.1 1.14 60 0.216 0.4 4.5 4 0.018 0.133 326 Enquire Now
WSMT-H-I-150 C 1.5 1-1/2 38.1 1.14 60 0.278 0.5 4.5 5 0.018 0.133 270 Enquire Now
WSMT-H-I-150 D 1.5 1-1/2 38.1 1.14 60 0.329 0.6 4.5 6 0.018 0.133 221 Enquire Now
WSMT-H-I-150 E 1.5 1-1/2 38.1 1.14 60 0.39 0.7 4.5 7 0.018 0.133 194 Enquire Now
WSMT-H-I-150 F 1.5 1-1/2 38.1 1.14 60 0.443 0.8 4.5 8 0.018 0.133 168 Enquire Now
WSMT-H-I-150 G 1.5 1-1/2 38.1 1.14 60 0.555 1 4.5 10 0.018 0.133 135 Enquire Now
WSMT-H-I-150 H 1.5 1-1/2 38.1 1.14 60 0.726 1.3 4.5 13 0.018 0.133 105 Enquire Now
WSMT-H-I-150 I 1.5 1-1/2 38.1 1.14 60 0.89 1.6 4.5 16 0.018 0.133 85 Enquire Now
WSMT-H-I-150 J 1.5 1-1/2 38.1 1.14 60 1.119 2 4.5 20 0.018 0.133 68 Enquire Now
WSMT-L-I-175 A 1.75 1-3/4 44.4 1.34 25 0.155 0.375 3.5 3 0.018 0.143 114 Enquire Now
WSMT-L-I-175 B 1.75 1-3/4 44.4 1.34 25 0.2 0.5 3.5 4 0.018 0.143 83 Enquire Now
WSMT-L-I-175 C 1.75 1-3/4 44.4 1.34 25 0.265 0.625 3.5 5 0.018 0.143 69 Enquire Now
WSMT-L-I-175 D 1.75 1-3/4 44.4 1.34 25 0.31 0.75 3.5 6 0.018 0.143 57 Enquire Now
WSMT-L-I-175 E 1.75 1-3/4 44.4 1.34 25 0.367 0.87 3.5 7 0.018 0.143 50 Enquire Now
WSMT-L-I-175 F 1.75 1-3/4 44.4 1.34 25 0.415 1 3.5 8 0.018 0.143 43 Enquire Now
WSMT-L-I-175 G 1.75 1-3/4 44.4 1.34 25 0.523 1.25 3.5 10 0.018 0.143 34 Enquire Now
WSMT-L-I-175 H 1.75 1-3/4 44.4 1.34 25 0.638 1.5 3.5 12 0.018 0.143 29 Enquire Now
WSMT-L-I-175 I 1.75 1-3/4 44.4 1.34 25 0.737 1.75 3.5 14 0.018 0.143 25 Enquire Now
WSMT-L-I-175 J 1.75 1-3/4 44.4 1.34 25 0.844 2 3.5 16 0.018 0.143 22 Enquire Now
WSMT-M-I-175 A 1.75 1-3/4 44.4 1.34 50 0.188 0.375 4.5 3 0.018 0.143 267 Enquire Now
WSMT-M-I-175 B 1.75 1-3/4 44.4 1.34 50 0.244 0.5 4.5 4 0.018 0.143 195 Enquire Now
WSMT-M-I-175 C 1.75 1-3/4 44.4 1.34 50 0.315 0.625 4.5 5 0.018 0.143 161 Enquire Now
WSMT-M-I-175 D 1.75 1-3/4 44.4 1.34 50 0.374 0.75 4.5 6 0.018 0.143 133 Enquire Now
WSMT-M-I-175 E 1.75 1-3/4 44.4 1.34 50 0.452 0.87 4.5 7 0.018 0.143 120 Enquire Now
WSMT-M-I-175 F 1.75 1-3/4 44.4 1.34 50 0.505 1 4.5 8 0.018 0.143 101 Enquire Now
WSMT-M-I-175 G 1.75 1-3/4 44.4 1.34 50 0.629 1.25 4.5 10 0.018 0.143 81 Enquire Now
WSMT-M-I-175 H 1.75 1-3/4 44.4 1.34 50 0.768 1.5 4.5 12 0.018 0.143 68 Enquire Now
WSMT-M-I-175 I 1.75 1-3/4 44.4 1.34 50 0.899 1.75 4.5 14 0.018 0.143 59 Enquire Now
WSMT-M-I-175 J 1.75 1-3/4 44.4 1.34 50 1.026 2 4.5 16 0.018 0.143 51 Enquire Now
WSMT-H-I-175 A 1.75 1-3/4 44.4 1.34 90 0.232 0.375 4.5 3 0.024 0.148 629 Enquire Now
WSMT-H-I-175 B 1.75 1-3/4 44.4 1.34 90 0.314 0.5 4.5 4 0.024 0.148 484 Enquire Now
WSMT-H-I-175 C 1.75 1-3/4 44.4 1.34 90 0.409 0.625 4.5 5 0.024 0.148 417 Enquire Now
WSMT-H-I-175 D 1.75 1-3/4 44.4 1.34 90 0.482 0.75 4.5 6 0.024 0.148 336 Enquire Now
WSMT-H-I-175 E 1.75 1-3/4 44.4 1.34 90 0.577 0.87 4.5 7 0.024 0.148 307 Enquire Now
WSMT-H-I-175 F 1.75 1-3/4 44.4 1.34 90 0.651 1 4.5 8 0.024 0.148 258 Enquire Now
WSMT-H-I-175 G 1.75 1-3/4 44.4 1.34 90 0.813 1.25 4.5 10 0.024 0.148 206 Enquire Now
WSMT-H-I-175 H 1.75 1-3/4 44.4 1.34 90 0.98 1.5 4.5 12 0.024 0.148 173 Enquire Now
WSMT-H-I-175 I 1.75 1-3/4 44.4 1.34 90 1.147 1.75 4.5 14 0.024 0.148 149 Enquire Now
WSMT-H-I-175 J 1.75 1-3/4 44.4 1.34 90 1.317 2 4.5 16 0.024 0.148 132 Enquire Now
WSMT-L-I-200 A 2 2 50.8 1.6 25 0.094 0.375 3.5 3 0.018 0.143 89 Enquire Now
WSMT-L-I-200 B 2 2 50.8 1.6 25 0.12 0.5 3.5 4 0.018 0.143 66 Enquire Now
WSMT-L-I-200 C 2 2 50.8 1.6 25 0.158 0.625 3.5 5 0.018 0.143 54 Enquire Now
WSMT-L-I-200 D 2 2 50.8 1.6 25 0.179 0.75 3.5 6 0.018 0.143 44 Enquire Now
WSMT-L-I-200 E 2 2 50.8 1.6 25 0.217 0.87 3.5 7 0.018 0.143 38 Enquire Now
WSMT-L-I-200 F 2 2 50.8 1.6 25 0.243 1 3.5 8 0.018 0.143 33 Enquire Now
WSMT-L-I-200 G 2 2 50.8 1.6 25 0.306 1.25 3.5 10 0.018 0.143 26 Enquire Now
WSMT-L-I-200 H 2 2 50.8 1.6 25 0.365 1.5 3.5 12 0.018 0.143 22 Enquire Now
WSMT-L-I-200 I 2 2 50.8 1.6 25 0.433 1.75 3.5 14 0.018 0.143 19 Enquire Now
WSMT-L-I-200 J 2 2 50.8 1.6 25 0.49 2 3.5 16 0.018 0.143 17 Enquire Now
WSMT-M-I-200 A 2 2 50.8 1.6 50 0.14 0.375 4.5 3 0.018 0.143 213 Enquire Now
WSMT-M-I-200 B 2 2 50.8 1.6 50 0.184 0.5 4.5 4 0.018 0.143 158 Enquire Now
WSMT-M-I-200 C 2 2 50.8 1.6 50 0.245 0.625 4.5 5 0.018 0.143 132 Enquire Now
WSMT-M-I-200 D 2 2 50.8 1.6 50 0.278 0.75 4.5 6 0.018 0.143 106 Enquire Now
WSMT-M-I-200 E 2 2 50.8 1.6 50 0.345 0.87 4.5 7 0.018 0.143 95 Enquire Now
WSMT-M-I-200 F 2 2 50.8 1.6 50 0.395 1 4.5 8 0.018 0.143 83 Enquire Now
WSMT-M-I-200 G 2 2 50.8 1.6 50 0.498 1.25 4.5 10 0.018 0.143 66 Enquire Now
WSMT-M-I-200 H 2 2 50.8 1.6 50 0.593 1.5 4.5 12 0.018 0.143 55 Enquire Now
WSMT-M-I-200 I 2 2 50.8 1.6 50 0.694 1.75 4.5 14 0.018 0.143 47 Enquire Now
WSMT-M-I-200 J 2 2 50.8 1.6 50 0.8 2 4.5 16 0.018 0.143 42 Enquire Now
WSMT-H-I-200 A 2 2 50.8 1.6 90 0.197 0.375 4.5 3 0.024 0.148 506 Enquire Now
WSMT-H-I-200 B 2 2 50.8 1.6 90 0.258 0.5 4.5 4 0.024 0.148 372 Enquire Now
WSMT-H-I-200 C 2 2 50.8 1.6 90 0.332 0.625 4.5 5 0.024 0.148 307 Enquire Now
WSMT-H-I-200 D 2 2 50.8 1.6 90 0.389 0.75 4.5 6 0.024 0.148 249 Enquire Now
WSMT-H-I-200 E 2 2 50.8 1.6 90 0.465 0.87 4.5 7 0.024 0.148 222 Enquire Now
WSMT-H-I-200 F 2 2 50.8 1.6 90 0.525 1 4.5 8 0.024 0.148 189 Enquire Now
WSMT-H-I-200 G 2 2 50.8 1.6 90 0.661 1.25 4.5 10 0.024 0.148 153 Enquire Now
WSMT-H-I-200 H 2 2 50.8 1.6 90 0.781 1.5 4.5 12 0.024 0.148 125 Enquire Now
WSMT-H-I-200 I 2 2 50.8 1.6 90 0.941 1.75 4.5 14 0.024 0.148 111 Enquire Now
WSMT-H-I-200 J 2 2 50.8 1.6 90 1.069 2 4.5 16 0.024 0.148 97 Enquire Now
Related Products
  1. WSN-G Wave Springs
    WSN-G Wave Springs
  2. WSMT Wave Springs – Metric
    WSMT Wave Springs – Metric
  3. WSS-O, WSS-G Wave Springs
    WSS-O, WSS-G Wave Springs
