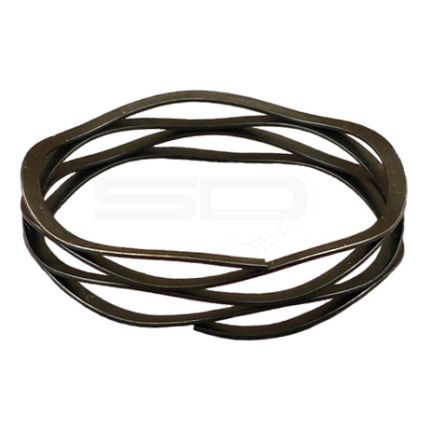

WSMT Wave Springs - Metric - WSMT-H-40 B
Product Description
Multi Turn, Metric
Used for low force applications with large deflections: more turns equals less force. Utilises nearly half the space as helical compression springs while producing the same force.
Material codes: ST = Carbon Steel. SQ = 17-7 PH/C Stainless Steel. Special alloys available upon request.
| Housing Dia. (Dh mm) | Shaft Dia. Clearance (Ds) | Load (N) | Work Height (WH) | Free Height Ref. (FH) | Number of Waves | Number of Turns | Thickness T | Section S | Spring Rate Ref. N/mm |
|---|---|---|---|---|---|---|---|---|---|
| 40 | 30 | 300 | 7.54 | 12.19 | 4.5 | 4 | 0.46 | 3.38 | 64.54 |
