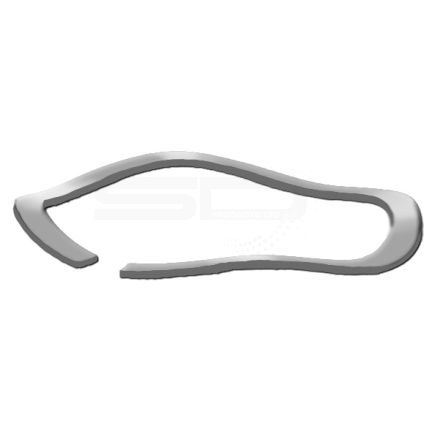

WSN-G Wave Springs - WSN-G-562
Product Description
Single Turn, Narrow, Inch
Ideal for short deflection applications where space is minimal.
| Housing Dia. (Dh) | Shaft Dia. Clearance (Ds) | Load (lb) | Work Height (WH) | Free Height Ref. (FH) | Number of Waves* | Thickness T | Section S | Spring Rate Ref. Lbs./in. |
|---|---|---|---|---|---|---|---|---|
| 5.625 | 5.19 | 88 | 0.125 | 0.29 | 6 | 0.03 | 0.188 | 533 |
